Full SiC power module TH40F10030C9E-WT

ACDC

Product Introduction

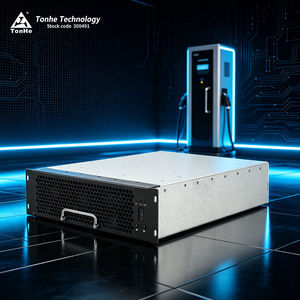

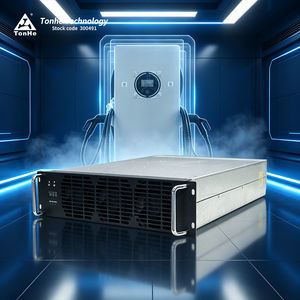

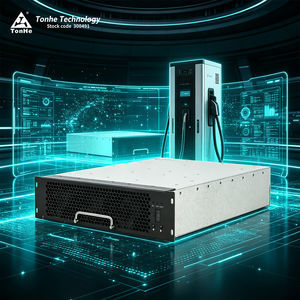

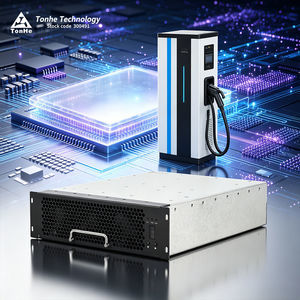

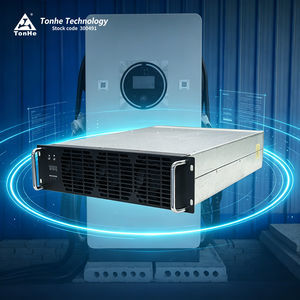

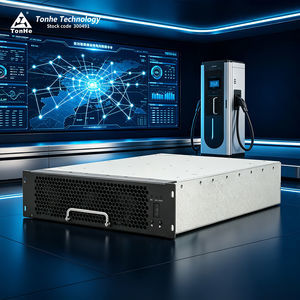

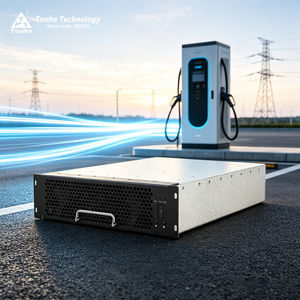

TH40F10030C9E-WT is a power module developed for EV charging stations supporting 270–490 Vac three-phase four-wire input. It delivers up to 40 kW with a default constant-power output range of 300–1000 VDC (configurable 50–1000 VDC). The charging system controller communicates with the module via CAN to set parameters, monitor operation and control status.

Product Advantages

• Low acoustic emission: full-load noise ≈60 dB (room temperature)
• High efficiency: full-load efficiency >96%; peak efficiency ≥97.2%
• Low standby reactive power: <12 Var
• DM winding design reduces wound-component volume by ~30% for improved thermal dissipation

Parametric Performance (key items)
Model No.: TH40F10030C9E-WT
AC input - Rated voltage: 380 VAC (three-phase), operating range 285–475 VAC
AC input - Frequency: 50 Hz
AC input - Power factor: ≥0.99
AC input - Overvoltage protection: 490 ± 10 VAC
AC input - Undervoltage protection: 270 ± 10 VAC
DC output - Rated power: 40 kW
DC output - Voltage range: 50–1000 VDC (default constant-power range 300–1000 VDC at 40 kW)
DC output - Current range: 1–134 A
DC output - Peak efficiency: ≥97.2%
Soft start time: ≤5 s
Short-circuit protection: shutdown and latch; requires power cycle to clear fault
Voltage regulation accuracy: ≤±0.5%
THD: ≤5%
Current regulation accuracy: ≤±1%
Current sharing imbalance: ≤±5%

Operating Environment
Operating temperature: -40°C to +70°C
Relative humidity: 5%–95% RH (no condensation)
Altitude: ≤2000 m

Product Features

• Cooling method: fan cooling
• Standby power consumption: <10 W
• Communication protocol: CAN bus
• Address/UI: digital display and keys
• Dimensions (without handle): 437.5 × 300 × 84 mm (L × W × H)
• Weight: ≤18 kg
• MTBF: 500,000 hours

Production & Test Capabilities
Manufacturing supports automated SMT, solder paste printing and inspection, wave soldering, conformal coating and aging test lines. Testing capabilities include EMC laboratory, semi-anechoic 3m EMC chamber and comprehensive electrical test equipment for charger and power module validation.

Certifications
ISO9001, IATF16949, CE, TUV

Technical specifications

• Model: TH40F10030C9E-WT
• Brand: Tonhe
• Rated output power: 40 kW
• Output constant power range: 300–1000 VDC (constant 40 kW within this range)
• Output voltage range: 50–1000 VDC
• Output current range: 1–134 A
• Peak efficiency: ≥97.2%
• Full-load efficiency: >96%
• Input voltage: rated 380 VAC (three-phase), operating range 285–475 VAC
• Input frequency: 50 Hz
• Input power factor: ≥0.99
• Input overvoltage protection: 490 ± 10 VAC
• Input undervoltage protection: 270 ± 10 VAC
• Soft start time: ≤5 s
• Short-circuit behavior: shutdown and latch, requires power cycle to clear
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• THD: ≤5%
• Cooling: fan cooling
• Standby power consumption: <10 W
• Communication: CAN bus
• Address/UI: digital screen + keys
• Dimensions (L×W×H): 437.5 × 300 × 84 mm (without handle)
• Weight: ≤18 kg
• MTBF: 500,000 hours
• Operating temperature: -40°C to +70°C
• Relative humidity: 5%–95% RH (no condensation)
• Altitude: ≤2000 m
