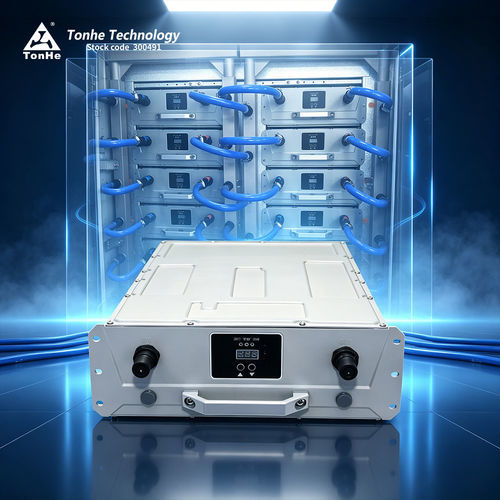

Digital power module TH40F10030C8L-WT

for charging electric vehiclesACDC

Product Overview
TH40F10030C8L-WT is a liquid-cooled power module by Tonhe Technology designed for EV charging stations. It accepts 3-phase AC input (323–460Vac nominal) and delivers up to 40 kW of DC power with a default constant output range of 300–1000 VDC. CAN communication enables integration with charger monitoring and control units.

Key Advantages

• Running noise: 0 dB
• Degree of protection: IP65
• Wide operating temperature: -40℃ to +75℃
• Designed life > 10 years, maintenance-minimized process
• High conversion efficiency: peak ≥ 97%

Technical Specifications

• Model: TH40F10030C8L-WT
• Rated power: 40 kW
• AC input: Rated 400 VAC (3W+PE), operating 270–490 VAC, 50/60 Hz ±10%
• Input power factor: ≥0.99; THD ≤ ±5%
• DC output: 300–1000 VDC, current 0.5–133.3 A; constant power range 300–1000 VDC
• Peak efficiency ≥97%; soft start ≤3 s; voltage regulation ≤ ±0.5%; current regulation ≤ ±1%; current sharing imbalance ≤ ±5%
• Protection: input over/undervoltage, short-circuit self-rollback
• Cooling method: Liquid cooling; standby consumption <10 W
• Communication: CAN (125 kbs, 5 V); address via digital display and buttons
• Dimensions (without handle): 460×300×120 mm (D×W×H); weight ≤35 kg; MTBF 500,000 h

Installation & Communication
Supports horizontal, side-standing or upside-down installation. CAN bus communication with monitoring/control unit enables parameter setting, telemetry and status control. Front-panel customization available for alternative installations.

Environmental & Reliability
Operating temperature -40℃ to +75℃; relative humidity ≤95% non-condensing; altitude ≤2000 m (derating above). IP65 enclosure supports outdoor or harsh-site deployment. MTBF and life targets suit long-term commercial installations.

Production & Test Facilities
Tonhe Technology is ISO9001 and IATF16949 certified. Manufacturing includes automated SMT lines, wave soldering, conformal coating line, aging detection and full inspection. Test center features CNAS-certified EMC chamber, Chroma loads and AC sources, Yokogawa power analyzer and temperature & humidity chambers for comprehensive validation.

Certifications & Warranty
Product and company certifications include ISO9001, IATF16949, CE and TUV for charging modules and chargers. Standard warranty: 12 months from shipment.

Packaging & Shipping
Packaged for protected transport. Small orders ship via express; large orders via sea/air container. Custom packaging options available for project shipments.

FAQ (selected)

• What is the communication protocol? CAN, 125 kbs, 5 V.
• Do modules support potting/glue filling? Yes, all series support glue filling.
• What installation methods are supported? Horizontal, side-standing or upside-down; front-panel customization possible.
• Typical lead time? About 7 days for ≥10 units; larger or customized orders require longer coordination (e.g., ~35 days).
• Warranty length? Standard 12 months from receipt.
• After-sale service? Online and on-site support available; 24-hour response scheme for projects.
