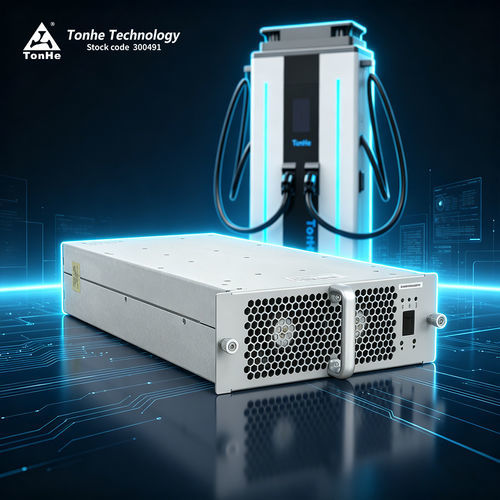

Digital power module TH40F10030C8E-WT

for charging electric vehiclesDCACDC

Product overview
TH40F10030C8E-WT (Kunlun Series) is a 40 kW power module by Tonhe Technology engineered for EV charging piles. It accepts 270VAC–490VAC three-phase four-wire input (3 phases + PE) and provides DC output with default constant-power ranges 300–500VDC and 600–1000VDC.

Key advantages

• Designed to meet State Grid three-unified size; supports wide constant-power ranges: 300–500V and 600–1000V
• Very low standby/reactive consumption: standby reactive power ≤ 10 Var; standby power ≤ 10 W
• Low distortion and high efficiency: THD ≤ 5%, peak efficiency ≥ 96%

Technical specifications

• Model: TH40F10030C8E-WT
• Brand: Tonhe Technology
• AC input rated voltage: 380 VAC (3W + PE); operating range 270–490 VAC
• AC input frequency: 50/60 Hz ±10%
• Input power factor: ≥ 0.99
• Input overvoltage protection: 487 ±10 VAC
• Input undervoltage protection: 270 ±10 VAC
• Rated DC output power: 40 kW
• DC output voltage range: 50–1000 VDC
• DC output current range: 0.5–134 A
• Output constant-power ranges: 300–500 VDC and 600–1000 VDC
• Peak efficiency: ≥ 96%
• Soft start time: 3–8 s
• Short-circuit protection: self-rollback protection
• Voltage regulation accuracy: ≤ ±0.5%
• Current regulation accuracy: ≤ ±1%
• Current sharing imbalance: ≤ ±5%
• THD (output): ≤ 5%

Operating environment
Working temperature: -30°C to +70°C
Relative humidity: 5% RH to 95% RH, non-condensing
Altitude: ≤ 2000 m (derating above 2000 m)

Product features

• Cooling: fan cooling
• Standby power consumption: ≤ 10 W
• Communication: CAN (125 kbps, 5 V level)
• Address/display: digital screen and button operation
• Supported installation orientations: horizontal, side standing, inverted
• Module dimensions (without handle): 460 × 218 × 84 mm (L × W × H)
• Weight: ≤ 15 kg
• MTBF: 500,000 hours

Manufacturing & test center
Tonhe Technology holds ISO9001 and IATF16949 certifications. Production lines include automated SMT, soldering, coating and aging test lines. Annual charging-module capacity exceeds 500,000 units after full-process production.

Test center
First-class CNAS-certified EMC laboratory with a semi-anechoic 3 m chamber, Chroma electronic loads, high-performance AC sources, power analyzers, precision meters, temperature & humidity chambers (-60°C to +150°C), AXOS8 transient system and transient immunity equipment. Supports radiated emission/immunity, surge, EFT, DIPs and full charger system tests.

Certifications
Company and product certifications include ISO9001, IATF16949, CE and TÜV among others.

Packaging & delivery
Small orders ship by express (FedEx, DHL, UPS). Large shipments by sea or air in containers. Lead time depends on quantity and customization; small sample orders may be available from stock; typical lead time for bulk/custom orders ~35 days (subject to confirmation).

FAQ (selected)

• Q: What communication protocol is used? A: CAN (125 kbps, 5 V).
• Q: Are modules potting/glue-fill supported? A: Yes, series supports glue filling.
• Q: Which installation orientations are supported? A: Horizontal, side standing or inverted installation supported.
• Q: What is delivery time? A: Short for small/sample orders; bulk/custom orders require longer production (example ~35 days).
• Q: Payment terms? A: Standard 100% TT in advance; negotiable for long-term cooperation (e.g. 50/50 or 30/70).
• Q: Warranty? A: Standard 12 months from receipt.
• Q: After-sales service? A: Online and on-site support available; 24-hour response scheme for project support.

Technical datasheet / Specifications

• Model: TH40F10030C8E-WT
• Brand: Tonhe Technology
• AC input rated voltage: 380 VAC (3W+PE); range 270–490 VAC
• AC input frequency: 50/60 Hz ±10%
• Input power factor: ≥ 0.99
• Input overvoltage protection: 487 ±10 VAC
• Input undervoltage protection: 270 ±10 VAC
• Rated DC output power: 40 kW
• DC output voltage range: 50–1000 VDC
• DC output current range: 0.5–134 A
• Output constant-power ranges: 300–500 VDC; 600–1000 VDC
• Peak efficiency: ≥ 96%
• Soft start: 3–8 s
• Short-circuit protection: self-rollback
• Voltage regulation accuracy: ≤ ±0.5%
• Current regulation accuracy: ≤ ±1%
• Current sharing imbalance: ≤ ±5%
• Cooling: fan cooling
• Standby power consumption: ≤ 10 W
• Communication: CAN (125 kbps, 5 V)
• Display / Address setting: digital screen and button
• Dimensions (L×W×H): 460 × 218 × 84 mm (without handle)
• Weight: ≤ 15 kg
• MTBF: 500,000 hours
