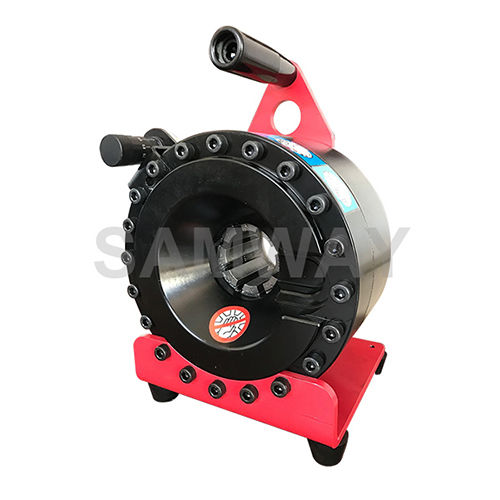

Elbow fitting crimping machine P18PEhydraulic hoseautomatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose, for elbow fittings
- Operational mode
- automatic
- Drive type
- hydraulic
- Other characteristics
- portable
- Crimping force
1,200 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 25.4 mm
Description
Feature description：
● Elbow 90 dgree hose up to 1"
● Portable 1" 4SP Crimper
● No electricity required
● Optional Enerpac Pneumatic Pump
● Complete Die Set
Main Specification
- SAMWAY P18PE
Max Hydraulic Hose
- 1" 4SP
Crimping Range mm
- 4-60
Die Type
- P18
Master Die Length mm
- 64
Max Opening mm
- +20
Optional hand Pump
- Enerpac two stage pump 700 bar
Crimping Force KN
- 1200
Control
- Micro Dail
L*W*H mm
- 190*180*310
Weight KG
- 22
