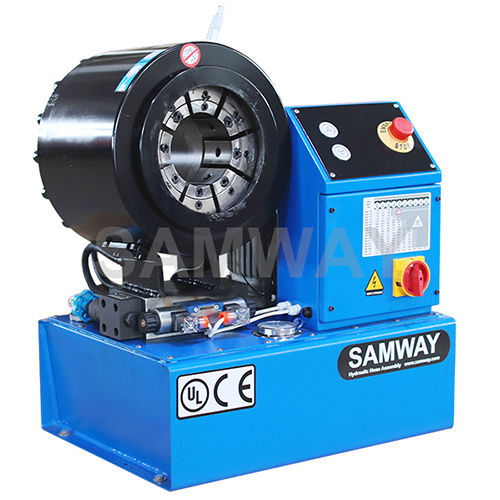

Hydraulic hose crimping machine S76fully-automatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- fully-automatic
- Drive type
- hydraulic
- Crimping force
2,800 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 76.2 mm
Description
Feature description：
● Full Automatic Precision Control
● Affordable 6 inch Industrial Hose
● Energy Saving and Safety Operation
● CE Approved
Main Specification
- SAMWAY S76
Max Hose
- 3"
Max Hydraulic Hose
- 2" 6SP
Maximum Industrial Hose
- 120mm ID
Crimping Range mm
- 10-120
Die Type
- 51
Master Die Length mm
- 80
Max Opening mm
- +24
Motor KW
- 4 by SIEMENS
Crimping Force KN
- 2800
Crimpings Per Hour
- 550
Control
- Advanced Programmable Chip
Foot pedal
- Included
Backstop Device
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 700*450*1350
Weight KG
- 370
