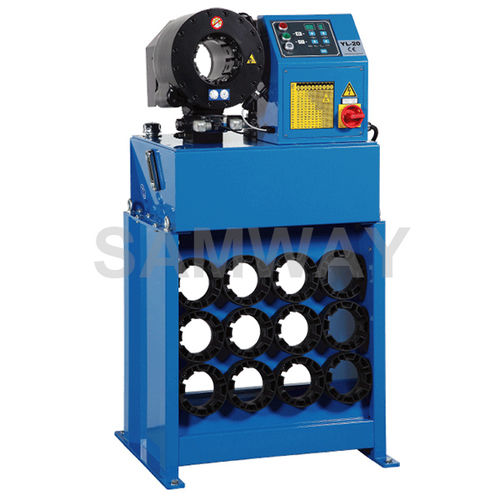

Hose crimping machine YL20S

automatichydraulicfoot-operated

Feature description： ● Digital Control ● Fast Crimping ● Foot pedal Control ● Standard Quick Change Tool SAMWAY YL-20,YL-20S, and YL-32 are nearly all used at the general workshop. All of the clients who buy our crimpers, they can offer their client need of the accuracy crimping diameter. The scope of crimping diameter from 4mm to 2 inch, you can choose it freely on your final crimping diameter, even if you need special dies set, we can also provide customize dies set. Max Hose Size - 1 1/4" Crimping Range ( mm ) - ψ4…ψ87 Die Type - 32 Max.Opening ( mm ) - +26 Master Die ( Die / Length ) - 80 Motor ( kw ) - 3.6 Voltage ( v ) - 220 / 440 Pump ( l/min ) - 13.5 Crimping Force ( kN ) - 1700 Crimping Hour - 1800 Noise level ( dB(A) ) - 71 Protection Class - IP54 Length*Width*Height( mm ) - 680*600*1350 Weight ( kg ) - 230
