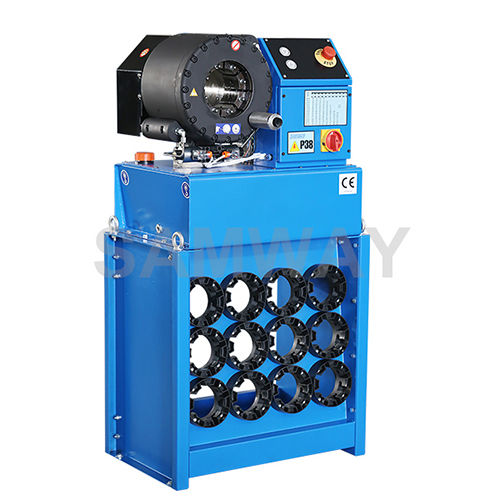

Hydraulic hose crimping machine P38Qfully-automaticfoot-operatedportable
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- fully-automatic
- Drive type
- foot-operated
- Other characteristics
- portable
- Crimping force
4,200 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 50.8 mm
Description
Feature description：
● Full Automatic Control with Foot pedal
● Quick Change Tool and Die rack
● Energy Saving and Safety Operation
● 2" 6SP Hydraulic Hose
● TUV CE Approved
Main Specification
- SAMWAY P38Q
Max Hydraulic Hose
- 2" 6SP
Crimping Range mm
- 4-95
Die Type
- P32
Master Die Length mm
- 80
Max Opening mm
- +32
Motor KW - 4
Crimping Force KN
- 4200
Crimpings Per Hour
- 1000
Control
- Control with advanced programmable chip
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Optional
Control by Pressure
- Optional
Noise Level dBA
- 67
Protection Class
- IP56
L*W*H mm
- 680*600*1400
Weight KG
- 320
