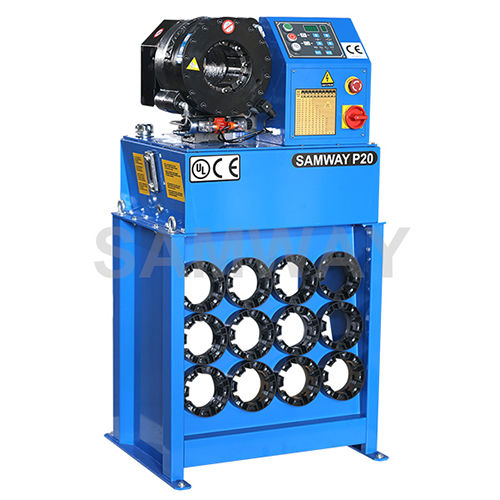

Hydraulic hose crimping machine P20DautomatichydraulicPLC-controlled
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Drive type
- hydraulic
- Other characteristics
- PLC-controlled
- Crimping force
1,700 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 38.1 mm
Description
Feature description：
● Digital Precision Control
● Quick Change Tool and Die rack
● Energy Saving and Safety Operation
● TUV CE Approved
Main Specification
- SAMWAY P20D
Max Hydraulic Hose
- 1 1/2" 4SP
Crimping Range mm
- 4-65
Die Type
- P20
Master Die Length mm
- 80
Max Opening mm
- +26
Motor KW
- 3
Crimping Force KN
- 1700
Crimpings Per Hour
- 1800
Control
- Digital Control
Foot pedal
- Include
Die Rack
- Include
Quick Change Tool
- Include
Backstop Device
- Optional
Control by Pressure
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 680*600*1400
Weight KG
- 270
