Hydraulic hose crimping machine P45DautomaticPLC-controlledhigh-capacity
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Other characteristics
- PLC-controlled, high-capacity
- Crimping force
4,500 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 50.8 mm
Description

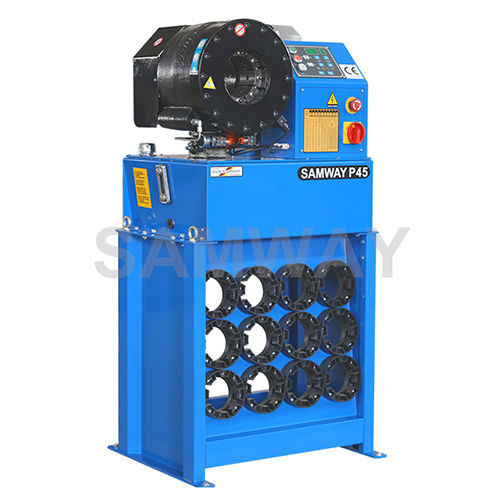

P45D Hydraulic Hose Crimping Machine
Feature description：
● Digital Precision Control
● Quick Change Tool and Die rack
● 2" 8SP Hydraulic Hose
● Pump Made In Germany by Voith
● TUV CE Approved
Specification：
Main Specification
- SAMWAY P45D
Max Hydraulic Hose
- 2"8SP
Crimping Range mm
- 4-95
Die Type
- P32
Master Die Length mm
- 80
Max Opening mm
- +32
Motor KW
- 4
Crimping Force KN
- 4500
Crimpings Per Hour
- 900
Control
- Precision Digital Control
Pump
- Made in Germany by Voith
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Optional
Control by Pressure
- Optional
Noise Level dBA
- 67
Protection Class
- IP56
L*W*H mm
- 680*600*1450
Weight KG
- 400
