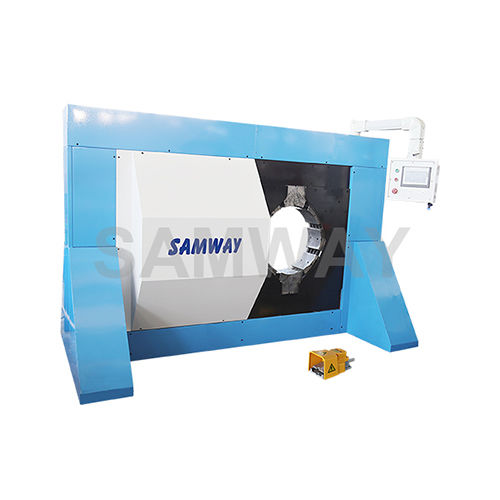

Hydraulic hose crimping machine FP195 H

automaticfoot-operatedPLC-controlled

Feature description： ● Up to 480 mm OD Crimping ● SIEMENS Precision Digital Control ● Low Crimping Height from Ground ● Die Set length up to 330 mm SAMWAY FP195 H 480 mm Hose Crimping Machine The Heavy Duty 17’’ Industrial & Composite Hose Crimping Machine for all hydraulic hose up to 17’’ or industrial hose up to 17’’. SAMWAY FP195 H feature a opening up to +150 mm, ideal for most kind of standard of the flange for the industrial and composite hose. If the die is 100 mm, then the machine could open as big as 100 mm + 150 mm =250 mm. The crimping center above the ground is only 650 mm, make the hose assembly is a lot easier and comfortable. SIEMENS Precision Digital Control makes the hydraulic hose assembly easier more simple and precision. Samway FP195 H is an Ultimate Industrial Hose Crimping Machine for all high standard, high quality Industrial & Composite hose assembly and industrial hose up to 17’’. Please contact SAMWAY for more details of Samway Industrial and Campsite Hose Crimping Machines. www.samway.com for more details. Crimping Range in inch OD - 17" Crimping Range in mm OD - 480 mm Recommended Crimping Range - 160-480 mm Crimping Force ton - 1200 Hydraulic hose - Any Opening mm - +150 Hydraulic System - By Rexroth System Power - 15 KW by SIEMENS motor Automatic Control System - SIEMENS control system (movable) Separate Hydraulic Power Unit - Place anywhere Crimping Center above the ground - 650 mm Pressure Control - Optional Oil Cooler - Optional Crimping Unit (L*W*H) - 2580*1780*1100 Weight of the Crimping Unit - 8500 KG Separate Hydraulic Unit (L*W*H) - 1200*1200*1750 Hydraulic Unit weight KG - 750 KG
