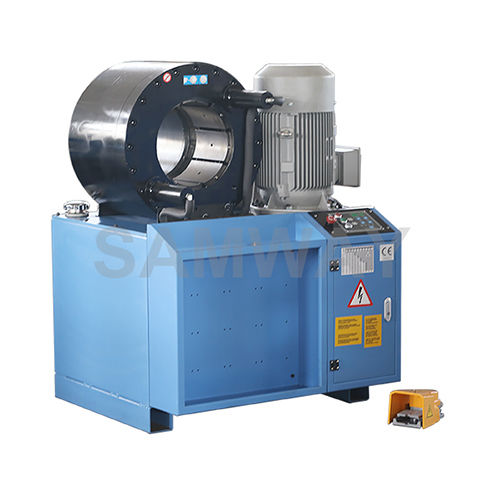

Hydraulic hose crimping machine P320fully-automaticelectro-hydraulicfoot-operated
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- fully-automatic
- Drive type
- electro-hydraulic, foot-operated
- Crimping force
2,800 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 254 mm
Description
Feature description：
● Full Automatic Control with Foot pedal
● 10" Industrail Hose
● Energy Saving and Safety Operation
Main Specification - SAMWAY P320
Industrial Hose
- 10"
Max Hydraulic Hose
- 4"6SP
Crimping Range mm
- 4-290
Die Type
- P32
Crimping Speed Second
- 12
Max Opening mm
- +60
Motor KW - 11KW
Crimping Force KN - 2800
Foot pedal - Included
Die Rack - Optional
Quick Change Tool - Optional
Backstop Device - Optional
Control by Pressure - Optional
Noise Level dBA - 65
Protection Class - IP56
L*W*H mm - 950*1000*1450
Weight KG - 1800
