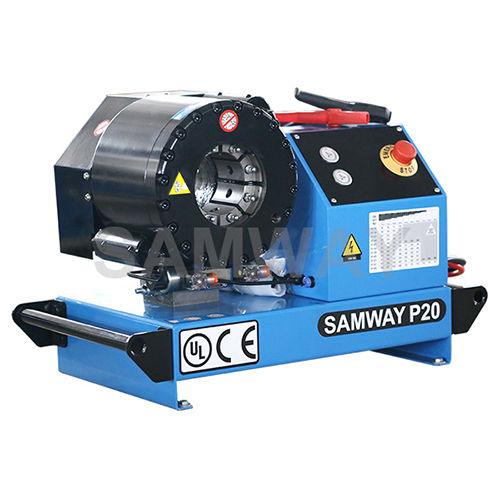

Hydraulic hose crimping machine P20Xautomaticelectro-hydrauliccompact
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Drive type
- electro-hydraulic
- Other characteristics
- compact
- Crimping force
2,200 kN
- Crimping capacity
Max.: 31.8 mm
Min.: 4 mm
(0.2 in)
Description
Feature description：
● Compact Design for use in a Van or Truck
● 12V/24V DC by Battery Power
● Up to 1 1/4"SP hydraulic hose
Main Specification
- SAMWAY P20X 12/24V DC For Mobile Van or Truck
Max Hydraulic Hose
- 1 1/4"
Crimping Range mm
- 4-65
Die Type
- P20
Master Die Length mm
- 80
Max Opening mm
- +24
Motor KW
- 2.2 KW 12V DC
Crimping Force KN
- 2200
Control
- Electrical Control
Foot pedal
- Optional
Die Rack
- Optional
Quick Change Tool
- Optional
Backstop Device
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 650*600*380
Weight KG
- 145
