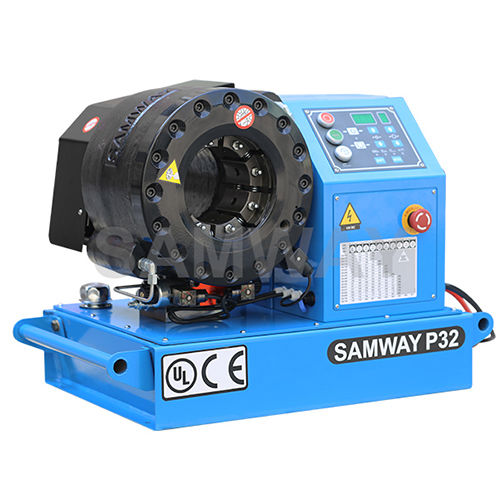

Hydraulic hose crimping machine P32XD
automaticcompactPLC-controlled

hydraulic hose crimping machine
hydraulic hose crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
hydraulic hose
Operational mode
automatic
Other characteristics
compact, PLC-controlled
Crimping force

2,200 kN

Crimping capacity

Min.: 4 mm (0.2 in)

Max.: 50.8 mm

Description

Feature description: ● Digital Precision Control ● Compact & Robust Design ● Optional Quick Change Tool & Die Rack ● TUV CE Approved P32XD 12/24V DC For Mobile Van or Truck Samway P32XD is a full capacity 2" 4SP Hydraulic Hose Crimping Machine Compact and Robust in Design, Samway P32XD bring the workshop 3 phase crimper to the limited mobile van, makes the mobile service a production centre powerful and productive as in the workshop. Optional Die Rack Quick change tool foot pedal make the crimping even more productive and easy. Standard electrical control with buttons version is also available upon request. Main Specification - SAMWAY P32XD Max Hydraulic Hose - 2" 4SP Crimping Range mm - 4-87 Die Type - P32 Master Die Length mm - 80 Max Opening mm - +32 Motor KW - 3KW 12V/24V DC Crimping Force KN - 2200 Crimpings Per Hour - 1200 Control - Digital Control Foot pedal - Optional Die Rack - Optional Quick Change Tool - Optional Backstop Device - Optional Control by Pressure - Optional Noise Level dBA - 65 Protection Class - IP56 L*W*H mm - 580*400*550 Weight KG - 135
