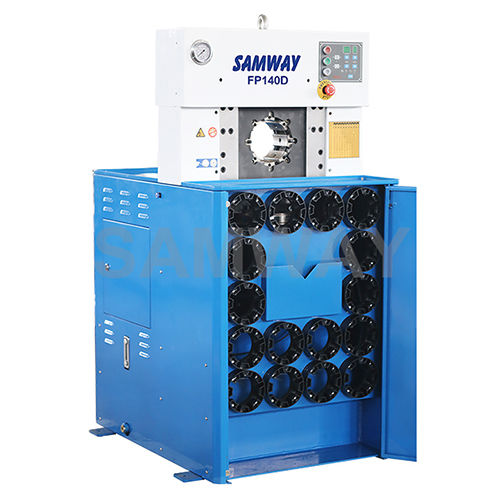

Hydraulic hose crimping machine FP140DautomatichydraulicPLC-controlled
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Drive type
- hydraulic
- Other characteristics
- PLC-controlled, high-capacity, large aperture, vertical, for tube swaging
- Crimping force
3,600 kN
- Crimping capacity
2 in, 4 in
Description
Feature description：
● Precision Digital Control
● Quick Change Tool and Die rack
● Designed for Mass Production
● Energy Saving and Safety Operation
● CE Approved
Main Specification
- SAMWAY FP140D
Max Hydraulic Hose
- 2" 6SP or 4" Industrial Hose
Crimping Range mm
- 4-124
Die Type
- P32
Master Die Length mm
- 100
Max Opening mm
- +86
Motor KW
- 7.5 by SIEMENS
Crimping Force KN
- 3600
Crimpings Per Hour
- 2000
Control
- Precision Digital Control
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Included
Mirror
- Included
Control by Pressure
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 900*1000*1600
Weight KG
- 1350
