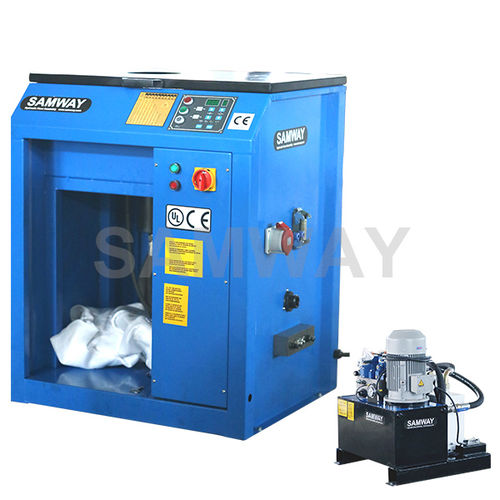

Nut crimping machine NC50automatichydraulicPLC-controlled
Add to favorites
Compare this product
Characteristics
- Product handled
- nut
- Operational mode
- automatic
- Drive type
- hydraulic
- Other characteristics
- PLC-controlled
- Crimping force
5,000 kN
- Crimping capacity
4 in
Description
Feature description：
● One-piece fitting Assembly
● Automatic Push Out System
● Supper Fast Production Speed
Main Specification
- SAMWAY NC50
Main application
- Dedicated for 1 piece fitting for Parker or Similar
Max Hose Size
- 4”
Crimping Range ( mm )
- 4-120
Die Type
- P32, FP140
Max. Opening ( mm )
- +24
Master Die ( Die / Length )
- 24
Motor KW
- 7.5KW by SIEMENS
Voltage ( v )
- 220/380V/415/440/480V 3 Phase
Crimping Force ( kN )
- 5000
Crimping Speed
- 7 sec./full cycle
Noise level ( dB(A) )
- 65
Protection Class
- IP54
Precision Digital Control
- Standard
Adjustment Precision
- 0.01 mm
Hydraulic Oil cooler
- Standard
Foot Pedal
- Standard
Product Automatic Push-Out System
- Optional
L*W*H (mm) main machine
- 685*1000*940
Weight ( kg ) main machine
- 450
Hydraulic Unit L*W*H mm
- 600*600*850
Hydraulic Unit Weight KG
- 350
