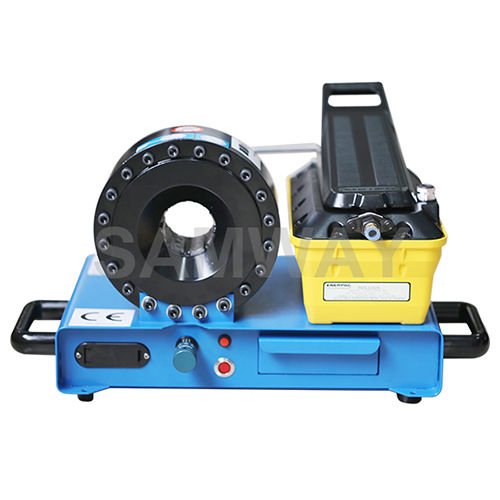

Hydraulic hose crimping machine P16APautomaticpneumaticcompact
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Drive type
- pneumatic
- Other characteristics
- compact
- Crimping force
1,000 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 25.4 mm
Description
Feature description：
● Super Compact
● No electricity required
● Enerpac Pneumatic Pump
● Complete Die Set
Main Specification
- SAMWAY P16AP
Max Hydraulic Hose
- 1" 3 wire
Crimping Range mm
- 4-45
Die Type
- P16
Master Die Length mm
- 64
Max Opening mm
- +20
Hand Pump
- Enerpac two stage Pneumatic pump 700 bar
Crimping Force KN
- 1000
Control
- Micro Dail
L*W*H mm
- 330*400*280
Weight KG
- 25
Hand Pump Model P16HP :00001810
Pneumatic Pump Model P16AP :00001811
