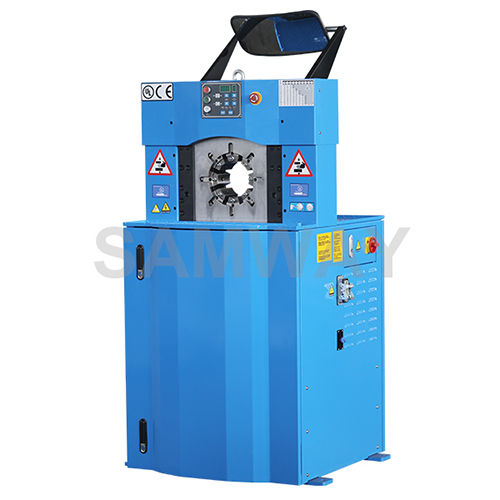

Hydraulic hose crimping machine FP145Dautomatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Drive type
- hydraulic
- Crimping force
5,000 kN
- Crimping capacity
2 in, 4 in
Description
Feature description:
● Precision Digital Control
● Quick Change Tool and Die rack
● Designed for Mass Production
● Energy Saving and Safety Operation
● Germany Made Voith Silent Pump
● CE Approved
Main Specification
- SAMWAY FP145D
Max Hydraulic Hose
- 2"6SP or 4" Industrial Hose
Crimping Range mm
- 4-124
Die Type
- P32
Master Die Length mm
- 110
Max Opening mm
- +80
Motor KW
- 7.5 by SIEMENS
Crimping Force KN
- 5000
Crimpings Per Hour
- 2500
Control
- Digital Control System
Pump - By Voith Made in Germany
Pump Typ
- Silent Pump
Valve
- Rexroth Made in Germany
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Optional
Mirror
- Standard
Control by Pressure
- Optional
Noise Level dBA
- 60
Protection Class
- IP56
L*W*H mm
- 900*700*1700
Weight KG
- 1300
