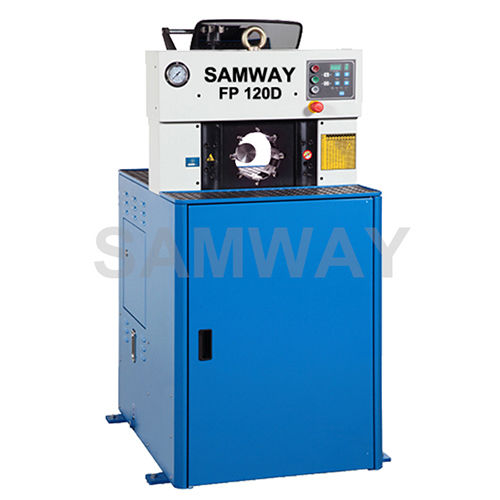

Hydraulic hose crimping machine FP120DautomaticPLC-controlledhigh-capacity
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Other characteristics
- PLC-controlled, high-capacity, large aperture, vertical
- Crimping force
2,800 kN
- Crimping capacity
Max.: 50.8 mm
Min.: 4 mm
(0.2 in)
Description
Feature description：
● Precision Digital Control
● Quick Change Tool and Die rack
● Designed for Mass Production
● Energy Saving and Safety Operation
● CE Approved
Main Specification
- SAMWAY FP120D
Max Hydraulic Hose
- 2" 6SP
Crimping Range mm
- 4-87
Die Type
- P32
Master Die Length mm
- 100
Max Opening mm
- +65
Motor KW
- 5.5 by SIEMENS
Crimping Force KN
- 2800
Crimpings Per Hour
- 2400
Control
- Precision Digital Control
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Included
Mirror
- Included
Control by Pressure
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 860*1000*1600
Weight KG
- 1220
