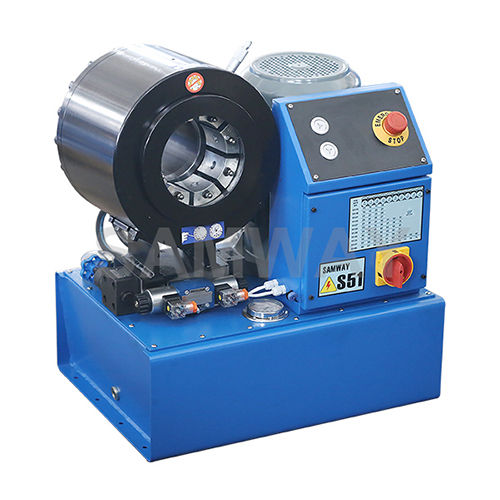

Hydraulic hose crimping machine S51fully-automatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- fully-automatic
- Drive type
- hydraulic
- Crimping force
1,900 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 50.8 mm
Description
Feature description：
● Full Automatic Precision Control
● Economical Affordable Crimper
● Energy Saving and Safety Operation
● CE Approved
Main Specification
- SAMWAY S51
Max Hydraulic Hose
- 2" 4SP
Crimping Range mm
- 4-95
Die Type
- 51
Master Die Length mm
- 80
Max Opening mm
- +24
Motor KW
- 3
Crimping Force KN
- 1900
Crimpings Per Hour
- 800
Control
- Advanced Programmable Chip
Foot pedal
- Included
Backstop Device
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 650*450*750
Weight KG
- 300
