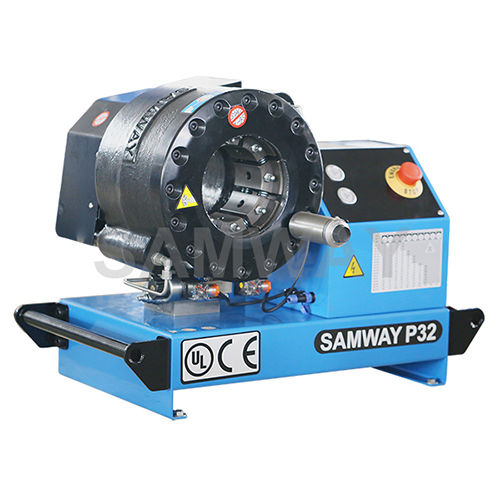

Hydraulic hose crimping machine P32CSautomaticelectro-hydrauliccompact
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Drive type
- electro-hydraulic
- Other characteristics
- compact
- Crimping force
2,200 kN
- Crimping capacity
Min.: 4 mm
(0.2 in)Max.: 50.8 mm
Description
Feature description：
● Compact Design for use in a Van or Truck
● 12V/24V DC by Battery Power
● Up to 2"4SP hydraulic hose
Main Specification
- SAMWAY P32CS 12/24V DC For Mobile Van or Truck
Max Hydraulic Hose
- 2" 4SP
Crimping Range mm
- 4-87
Die Type
- P32
Master Die Length mm
- 80
Max Opening mm
- +32
Motor KW
- 4
Crimping Force KN
- 2200
Control
- Electrical Control
Foot pedal
- Optional
Die Rack
- Optional
Quick Change Tool
- Optional
Backstop Device
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 650*500*400
Weight KG
- 195
