Chain sling 80 DOG

2-pointsteelsteel alloy

Product Overview

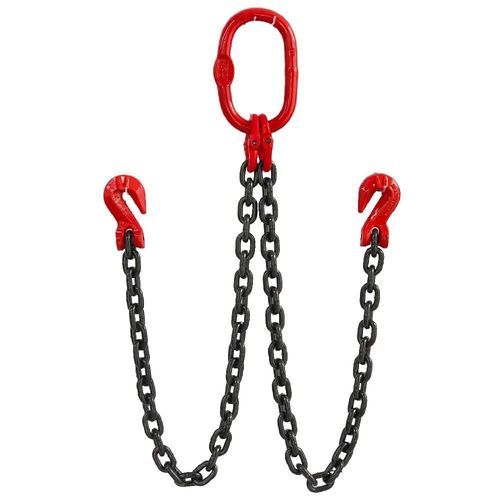

Grade 80 DOG Chain Sling is a double-leg lifting assembly manufactured from quenched and tempered Grade 80 alloy steel chain and components. The sling is fitted with a Grade 80 oblong master link on the top and Grade 80 grab hooks on the bottom, allowing quick chain length adjustment and balanced two-point lifting for overhead applications. Each sling is permanently identified with a serial number, chain size, grade, exact sling length, and Working Load Limit (WLL) to ensure complete product traceability.

Product Configuration Code

• D = Double Leg
• O = Oblong Master Link
• G = Grab Hook

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Typical Applications

• Heavy Machinery Handling
• Structural Steel Lifting
• Equipment Installation
• Construction Projects
• Mining Maintenance
• Industrial Material Handling

Parameters — Meter table (values are WLL in metric tons)
Diameter of Lifting Chain | 1 Leg (ton) | 2 Legs (0°–45° / 45°–60°) (ton) | 3 & 4 Legs (0°–45° / 45°–60°) (ton) | Continuous Sling (ton)
4 mm | 0.5 | 0.71 | 0.5 / 1.06 | 0.75 / 0.8
5 mm | 0.8 | 1.12 | 0.8 / 1.6 | 1.18 / 1.24
6 mm | 1.12 | 1.6 | 1.12 / 2.36 | 1.7 / 1.8
7 mm | 1.5 | 2.12 | 1.5 / 3.15 | 2.24 / 2.5
8 mm | 2 | 2.8 | 2 / 4.25 | 3 / 3.15
10 mm | 3.15 | 4.25 | 3.15 / 6.7 | 4.75 / 5
13 mm | 5.3 | 7.5 | 5.3 / 11.2 | 8 / 8.5
16 mm | 8 | 11.2 | 8 / 17 | 11.8 / 12.5
18 mm | 10 | 14 | 10 / 21 | 15 / 16
19 mm | 11.2 | 16 | 11.2 / 23.5 | 16.8 / 17.9
20 mm | 12.5 | 17 | 12.5 / 26.2 | 18.7 / 20
22 mm | 15 | 21.2 | 15 / 31.5 | 22.5 / 24
26 mm | 21.2 | 30 | 21.2 / 44.5 | 31.8 / 33.9
28 mm | 25 | 33.5 | 25 / 52.5 | 37.5 / 40
30 mm | 28 | 39.2 | 28 / 58.8 | 42 / 44.8
32 mm | 31.5 | 45 | 31.5 / 66.1 | 47.2 / 50.4
36 mm | 40 | 56 | 40 / 84 | 60 / 64
38 mm | 45 | 63 | 45 / 94.5 | 67.5 / 72
40 mm | 50 | 70 | 50 / 105 | 75 / 80
45 mm | 63 | 88.2 | 63 / 132.3 | 94.5 / 100.8
50 mm | 78.5 | 109.9 | 78.5 / 164.8 | 117.7 / 125.6

Parameters — Feet table (WLL values in lbs, Design Factor 4:1)
Design Factor | 1-Leg Sling | 2-Leg Sling (90° / 60° / 45° / 30°) | 3 & 4-Leg Slings (60° / 45° / 30°)
7/32" | 2,100 / 3,600 / 3,000 / 2,100 | 5,500 / 4,400 / 3,200
9/32" | 3,500 / 6,100 / 4,900 / 3,500 | 9,100 / 7,400 / 5,200
5/16" | 4,500 / 7,800 / 6,400 / 4,500 | 11,700 / 9,500 / 6,800
3/8" | 7,100 / 12,300 / 10,000 / 7,100 | 18,400 / 15,100 / 10,600
1/2" | 12,000 / 20,800 / 17,000 / 12,000 | 31,200 / 25,500 / 18,000
5/8" | 18,100 / 31,300 / 25,600 / 18,100 | 47,000 / 38,400 / 27,100
3/4" | 28,300 / 49,000 / 40,000 / 28,300 | 73,500 / 60,000 / 42,400
7/8" | 34,200 / 59,200 / 48,400 / 34,200 | 88,900 / 72,500 / 51,300
1" | 47,700 / 82,600 / 67,400 / 47,700 | 123,900 / 101,200 / 71,500
1-1/4" | 72,300 / 125,200 / 102,200 / 72,300 | 187,800 / 153,400 / 108,500

Standards

• Manufacturing Standards: Manufactured from Grade 80 quenched and tempered alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 requirements for lifting chain sling assemblies.
• Testing Standards: Minimum design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility. Chain complies with EN 818 fatigue requirements and withstands 20,000 cycles at 1.5 times the WLL. Every sling is supplied with an individual serial number, identification tag, written certification, and full traceability records.
• Application Standards: Suitable for overhead lifting, two-point lifting, heavy machinery handling, structural steel erection, equipment installation, construction projects, mining maintenance, and industrial material handling.
• Maintenance: Inspect before each use for chain elongation, wear, cracks, corrosion, grab hook wear or deformation, damaged master links or connecting links, and missing identification tags. Remove from service if defects exceed inspection criteria.

Technical specifications

• Model: Grade 80 DOG Chain Sling
• Sling style: Double-leg chain sling (DOG = Double Leg with Oblong Master Link on top and Grab Hooks on bottom)
• Material: Grade 80 quenched and tempered alloy steel chain and Grade 80 components
• Top fitting: Grade 80 oblong master link
• Bottom fitting: Grade 80 grab hooks (allowing quick chain length adjustment)
• Identification: Permanent serial number, chain size, chain grade, exact sling length, and Working Load Limit (WLL) on identification tag
• Supply: Supplied with written certification and full traceability records
• MOQ: 100 Sets
• Packaging: Carton + Steel Pallet
• Design Factor: Minimum 4:1; proof tested and visually inspected before shipment
• Typical applications: Heavy machinery handling, structural steel lifting, equipment installation, construction projects, mining maintenance, industrial material handling
