Wire rope sling

2-pointsteelgalvanised steel

Overview

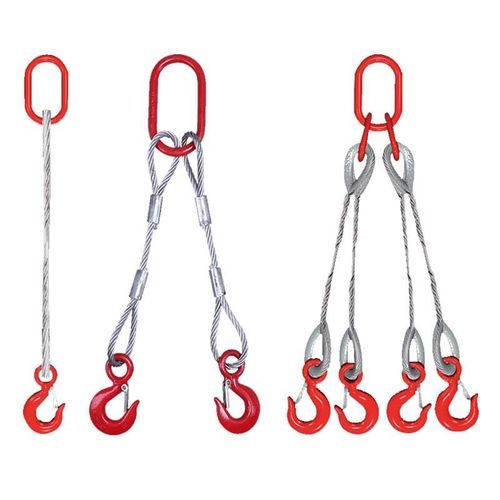

Two Leg Wire Rope Sling is manufactured from high-strength galvanized or bright steel wire rope formed into two legs connected to a master link assembly. Available termination options include soft eyes, thimble eyes, ferrule-secured eyes, hand-spliced eyes and mechanically spliced eyes. Each sling is individually serial numbered and marked with rope diameter, sling length and Working Load Limit (WLL) for full traceability.

Introduction
This two-leg lifting assembly connects two wire rope legs to a master link and is terminated with hooks, shackles or eye fittings to suit application requirements. Made from high-strength steel wire rope, the sling delivers flexibility and high tensile capacity. The two-leg configuration distributes loads across two attachment points to improve stability and reduce stress concentration during lifts. Typical applications include lifting machinery, steel structures, precast concrete, offshore equipment, pipes, fabricated components and other heavy loads in construction, shipbuilding, ports, mining and industrial plants.

Product Features

• High-strength galvanized or bright steel wire rope
• Two-leg design for balanced load distribution
• Soft eye, thimble eye, ferrule-secured, hand-spliced or mechanically spliced terminations
• Available with hooks, shackles, master links or custom end fittings
• Individually serial numbered for complete traceability

Product Identification

• Individual serial number
• Wire rope diameter
• Wire rope construction
• Exact sling length
• Working Load Limit (WLL)

Parameter — Wire Rope Sling working load limit (WLL) Unit: tons
The product page includes a comprehensive WLL matrix (unit: tons) giving values by nominal wire rope diameter (d mm) and hitch/lift configurations (Vertical Lift, Choker, Basket) and multi-leg sling angles. Example rows from the WLL table (representative values):
Nominal diameter d (mm) | Vertical 90° | Choker 90° | Basket 90° | Two legs 45° | Two legs 60° | Two legs 90° | Three/four legs 45° | Three/four legs 60° | Three/four legs 90° | Weight (kg/m)
8 | 0.81 | 0.61 | 1.4 | 1.5 | 1.4 | 1.1 | 3 | 2.89 | 2.3 | 0.225
10 | 1.2 | 0.96 | 2.3 | 2.3 | 2.2 | 1.8 | 4.7 | 4.4 | 3.6 | 0.398
16 | 3.2 | 2.4 | 5.6 | 6 | 5.6 | 4.6 | 12 | 11.3 | 9.2 | 1.02
24 | 7.4 | 5.1 | 12.7 | 13.6 | 12.7 | 10.4 | 27.3 | 25.5 | 20.9 | 2.29
36 | 18.55 | 13.9 | 32.2 | 34.4 | 32.2 | 26.2 | 68.85 | 64.4 | 52.65 | 5.75
48 | 29.5 | 22.1 | 51.1 | 54.6 | 51.1 | 41.6 | 109.3 | 102.2 | 83.6 | 9.17
Note: the full WLL matrix for all diameters and hitch/angle configurations is available on the product page.

Main Steel Wire Rope (6×37+FC, 6×37+IWR)
Documentation provides tensile strength and minimum breaking load tables for common rope constructions and core types (NF, SF, IWR/IWS, FC) across nominal diameters from 5 mm, with tensile strength classes (1570–1960 MPa) and approximate weights (kg/100m). Specification matrices and images for multiple constructions are provided.

Standards & Manufacturing

• Name: Two Leg Wire Rope Sling
• MOQ: 100 sets
• Package: Carton + steel pallet
• Manufacturing standards: ISO 7531, ISO 2408, ISO 4309, EN 13414-1, EN 12385, ASME B30.9, OSHA 1910.184, applicable EU Machinery Regulation requirements; certifications available (ABS, BV, CCS, DNV, LR, NK, KR, RINA) where specified
• Testing: Minimum design factor 4:1. Each sling is proof load tested, visually inspected, dimensionally verified and supplied with individual serial number, inspection record and certificate for traceability. Type testing includes proof, fatigue, static and breaking load tests.
• Applications: Overhead lifting, two-point lifting, machinery installation, structural steel handling, precast concrete lifting, shipbuilding, offshore, port handling, mining, construction and general industrial material handling.
• Maintenance: Inspect before use for broken wires, corrosion, abrasion, kinks, crushing, bird-caging, excessive wear, damaged ferrules or splices, deformed thimbles, worn hooks/master links or missing identification tags. Remove from service if defects exceed discard criteria in ISO 4309, EN 13414 or applicable standards.

Technical specifications

• Material: High-strength galvanized or bright steel wire rope
• Wire rope constructions: various (6×37, 6×25Fi, 6×29Fi, 6×36WS, etc.) with FC, IWR/IWS, NF, SF core options
• Terminations: soft eyes, thimble eyes, ferrule-secured eyes, hand-spliced eyes, mechanically spliced eyes; hooks and shackles available
• Marking: Each sling permanently identified with serial number, rope diameter, rope construction, sling length, WLL
• Design factor: Minimum 4:1
• Supply includes: identification tag, inspection record, written certificate, traceability documentation
• Recommended uses: two-point lifting, machinery installation, shipbuilding, offshore, ports, mining, construction
