Chain sling Grade 80 QOSL

2-pointsteelsteel alloy

Product Overview

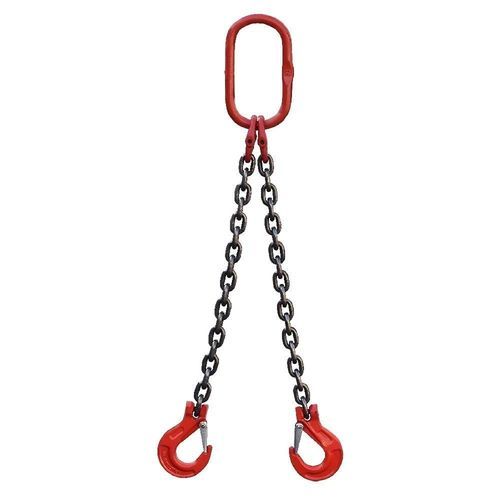

Grade 80 DOS chain sling is a double-leg lifting assembly manufactured from quenched and tempered Grade 80 alloy steel chain and matching Grade 80 components. The sling features an oblong master link at the top for crane connection and two sling hooks with safety latches at the bottom for secure load attachment. The double-leg configuration improves load distribution and lifting stability for industrial overhead lifts, machinery handling, steel erection and maintenance operations.

Identification

• Individual serial number
• Chain size
• Chain grade
• Exact sling length
• Working Load Limit (WLL)

Product Configuration Code

• D = Double Leg
• O = Oblong Master Link
• S = Sling Hook with Latch

Custom Manufacturing

• Custom sling lengths
• Special hook configurations
• Master link options
• Identification marking
• Specific WLL requirements
• Special lifting assemblies on request

Standards and Supply Information

• Name: Grade 80 DOS Chain Sling – Double Leg with Oblong Master Link (top) and Sling Hooks with Latch (bottom)
• MOQ: 100 sets
• Packaging: Carton + steel pallet
• Manufacturing standards: Grade 80 quenched and tempered alloy steel chain and components in accordance with EN 818-2, EN 1677-1/2/4, ASME B30.9, OSHA 1910.184, AS 2321 and ISO 3077 (as applicable)
• Testing: Design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified and checked for component compatibility. Chain meets EN 818 fatigue requirements (20,000 cycles at 1.5×WLL). Each sling supplied with identification tag, written certification and full traceability records.
• Applications: Overhead lifting, two-point lifting, machinery handling, structural steel erection, equipment installation, precast handling, mining maintenance, industrial material handling.
• Maintenance: Inspect before each use for elongation, wear, cracks, corrosion, hook deformation, latch operation, damaged master or connecting links and identification tags. Remove from service if defects exceed inspection criteria.

Parameter - Meter table (WLL values in metric tons)
Diameter (mm) | 1 Leg (t) | 2 Legs 0°–45° (t) | 2 Legs 45°–60° (t) | 3 & 4 Legs 0°–45° (t) | 3 & 4 Legs 45°–60° (t) | Continuous Sling (t)
4 | 0.5 | 0.71 | 0.5 | 1.06 | 0.75 | 0.8
5 | 0.8 | 1.12 | 0.8 | 1.6 | 1.18 | 1.24
6 | 1.12 | 1.6 | 1.12 | 2.36 | 1.7 | 1.8
7 | 1.5 | 2.12 | 1.5 | 3.15 | 2.24 | 2.5
8 | 2 | 2.8 | 2 | 4.25 | 3 | 3.15
10 | 3.15 | 4.25 | 3.15 | 6.7 | 4.75 | 5
13 | 5.3 | 7.5 | 5.3 | 11.2 | 8 | 8.5
16 | 8 | 11.2 | 8 | 17 | 11.8 | 12.5
18 | 10 | 14 | 10 | 21 | 15 | 16
19 | 11.2 | 16 | 11.2 | 23.5 | 16.8 | 17.9
20 | 12.5 | 17 | 12.5 | 26.2 | 18.7 | 20
22 | 15 | 21.2 | 15 | 31.5 | 22.5 | 24
26 | 21.2 | 30 | 21.2 | 44.5 | 31.8 | 33.9
28 | 25 | 33.5 | 25 | 52.5 | 37.5 | 40
30 | 28 | 39.2 | 28 | 58.8 | 42 | 44.8
32 | 31.5 | 45 | 31.5 | 66.1 | 47.2 | 50.4
36 | 40 | 56 | 40 | 84 | 60 | 64
38 | 45 | 63 | 45 | 94.5 | 67.5 | 72
40 | 50 | 70 | 50 | 105 | 75 | 80
45 | 63 | 88.2 | 63 | 132.3 | 94.5 | 100.8
50 | 78.5 | 109.9 | 78.5 | 164.8 | 117.7 | 125.6

Notes
All values expressed in metric tons represent maximum Working Load Limit (WLL). Design factor is 4:1. WLL varies with sling configuration and lifting angle. Continuous sling values refer to endless chain sling configuration.

Technical specifications

• Model / Series: DOS
• Material: Grade 80 quenched and tempered alloy steel chain and matching Grade 80 fittings
• Configuration: Double leg with oblong master link (top) and sling hooks with latch (bottom)
• Identification: Each sling marked with individual serial number, chain size, chain grade, exact sling length and WLL
• Design factor: 4:1
• Certification: Supplied with written certification and full traceability records; proof tested and inspected
• Applicable standards: EN 818-2, EN 1677-1/2/4, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077 (as applicable)
• MOQ: 100 sets
• Packaging: Carton + steel pallet
• Typical applications: Overhead lifting, machinery handling, steel erection, equipment installation, precast handling, mining maintenance, industrial material handling
