Chain sling Grade 100 DOS

2-pointsteelhardened steel

Product Overview

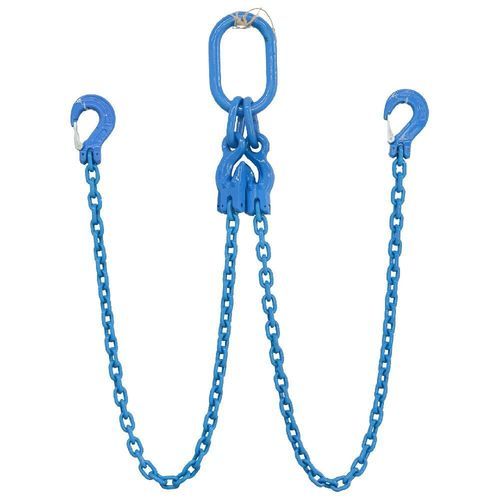

Grade 100 DOS Chain Sling is a double-leg lifting assembly manufactured from quenched and tempered Grade 100 alloy steel chain and components. The sling is fitted with a Grade 100 oblong master link on the top and two Grade 100 sling hooks with safety latches on the bottom, providing secure two-point load attachment for overhead lifting applications. Compared with Grade 80 slings, the Grade 100 design offers approximately 25% higher Working Load Limit for the same chain size. Each sling is permanently identified with a serial number, chain size, grade, exact sling length, and Working Load Limit to ensure complete product traceability.

Product Configuration Code

• D = Double Leg
• O = Oblong Master Link
• S = Sling Hook with Safety Latch

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Meter table
Item NO. | Diameter of Lifting Chain (mm) | 1 Leg (ton) | 2 Legs 0°<α<45° (ton) | 2 Legs 45°<α<60° (ton) | 3 & 4 Legs 0°<α<45° (ton) | 3 & 4 Legs 45°<α<60° (ton) | Continuous Sling (ton)
TPL81841004 | 4 | 0.63 | 0.88 | 0.63 | 1.32 | 0.94 | 1
TPL81841005 | 5 | 1 | 1.4 | 1 | 2.1 | 1.5 | 1.6
TPL81841006 | 6 | 1.4 | 1.96 | 1.4 | 2.94 | 2.1 | 2.24
TPL81841007 | 7 | 1.9 | 2.66 | 1.9 | 3.99 | 2.85 | 3.04
TPL81841008 | 8 | 2.5 | 3.5 | 2.5 | 5.25 | 3.75 | 4
TPL818410010 | 10 | 4 | 5.6 | 4 | 8.4 | 6 | 6.4
TPL818410013 | 13 | 6.7 | 9.38 | 6.7 | 14.07 | 10.05 | 10.72
TPL818410016 | 16 | 10.3 | 14.4 | 10.3 | 21.6 | 15.4 | 16.4
TPL818410018 | 18 | 12.5 | 17.5 | 12.5 | 26.2 | 18.75 | 20
TPL818410019 | 19 | 14 | 19.6 | 14 | 29.4 | 21 | 22.4
TPL818410020 | 20 | 16 | 22.4 | 16 | 33.6 | 24 | 25.6
TPL818410022 | 22 | 19.4 | 27.1 | 19.4 | 40.7 | 29.1 | 31
TPL818410026 | 26 | 26.5 | 37.1 | 26.5 | 55.6 | 39.7 | 42.4
TPL818410028 | 28 | 30.5 | 42.7 | 30.5 | 64 | 45.7 | 48.8
TPL818410030 | 30 | 35.5 | 49.7 | 35.5 | 74.5 | 53.2 | 56.8
TPL818410032 | 32 | 40 | 56 | 40 | 84 | 60.6 | 64
TPL818410036 | 36 | 50 | 70 | 50 | 105 | 75 | 80
TPL818410038 | 38 | 56.5 | 78.4 | 56.5 | 118.6 | 84.7 | 90.4
TPL818410040 | 40 | 62.5 | 87.5 | 62.5 | 131.2 | 93.7 | 100
TPL818410045 | 45 | 81 | 113.4 | 81 | 170.1 | 121.5 | 130
TPL818410050 | 50 | 98 | 137.2 | 98 | 205.8 | 147 | 156.8

Feet table
Item No. | Diameter of Lifting Chain (in.) | 1 Leg (lbs) | 2 Legs (Factor 1.4/Factor 2.1) (lbs) | 3 & 4 Legs (Factor 1.5/1.6) (lbs) | Continuous Sling (lbs)
TPL81841004 | 5/32 | 2,205 | 2,205 | 2,205 | 2,205
TPL81841005 | 3/16 | 2,205 | 2,205 | 2,205 | 4,409
TPL81841006 | 1/4 | 2,205 | 4,409 | 2,205 | 6,614
TPL81841007 | 9/32 | 4,409 | 6,614 | 4,409 | 8,819
TPL81841008 | 5/16 | 6,614 | 8,819 | 6,614 | 11,023
TPL81841010 | 3/8 | 8,819 | 13,228 | 8,819 | 17,637
TPL81841013 | 1/2 | 15,432 | 19,842 | 15,432 | 30,865
TPL81841016 | 5/8 | 22,046 | 30,865 | 22,046 | 48,502
TPL81841018 | 3/4 | 28,660 | 39,683 | 28,660 | 57,320
TPL81841019 | 3/4 | 30,865 | 44,092 | 30,865 | 63,934
TPL81841020 | 13/16 | 35,274 | 48,502 | 35,274 | 74,957
TPL81841022 | 7/8 | 41,888 | 59,525 | 41,888 | 90,390
TPL81841026 | 1 | 59,525 | 81,571 | 59,525 | 123,459
TPL81841028 | 1-1/8 | 68,343 | 94,798 | 68,343 | 141,096
TPL81841030 | 1-3/16 | 79,366 | 110,231 | 79,366 | 165,347
TPL81841032 | 1-1/4 | 88,185 | 123,459 | 88,185 | 185,188
TPL81841036 | 1-3/8 | 110,231 | 154,323 | 110,231 | 231,485
TPL81841038 | 1-1/2 | 125,664 | 171,960 | 125,664 | 262,350
TPL81841040 | 1-9/16 | 138,891 | 194,007 | 138,891 | 288,806
TPL81841045 | 1-3/4 | 178,574 | 249,122 | 178,574 | 374,786
TPL81841050 | 2 | 216,053 | 302,033 | 216,053 | 454,152

Standards & Testing

• Name: Grade 100 DOS Chain Sling – Double Leg Oblong Master Link on Top and Two Sling Hooks w/ Latch on Bottom
• MOQ: 100 Sets
• Package: Carton + Steel Pallet
• Manufacturing Standards: Manufactured from quenched and tempered Grade 100 alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 requirements for Grade 100 lifting chain sling assemblies.
• Testing Standards: Minimum design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. Chain complies with EN 818 fatigue requirements and withstands 20,000 load cycles at 1.5 times the WLL. Supplied with individual serial number, identification tag, written certification, and traceability records.
• Application Standards: Suitable for overhead lifting, two-point lifting, heavy machinery handling, structural steel erection, equipment installation, construction projects, mining maintenance, and industrial material handling.
• Maintenance: Inspect before each use for chain elongation, excessive wear, cracks, corrosion, sling hook deformation, safety latch operation, damaged master links, connecting links, and missing identification tags. Remove sling from service if defects exceed inspection criteria.

Caractéristiques / spécifications techniques

• Commercial name: Grade 100 DOS Chain Sling
• Material: Quenched and tempered Grade 100 alloy steel chain and components
• Top fitting: Grade 100 oblong master link
• Bottom fittings: Two Grade 100 sling hooks with spring-loaded safety latches
• Configuration: Double-leg (DOS = Double Leg, Oblong master link on top, Two sling hooks with safety latches on bottom)
• Identification: Each sling permanently marked with serial number, chain size, grade, exact sling length and WLL
• Design factor: 4:1
• Performance: ~25% higher WLL compared with Grade 80 for same chain size
• Standards: EN 818-2, EN 1677-1/2/4, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077
• Testing: Proof tested; EN 818 fatigue compliance; 20,000 cycles at 1.5×WLL
• MOQ and packaging: MOQ 100 sets; carton plus steel pallet packaging
