Chain sling Grade 100 DOSL

2-pointsteelalloy

Description

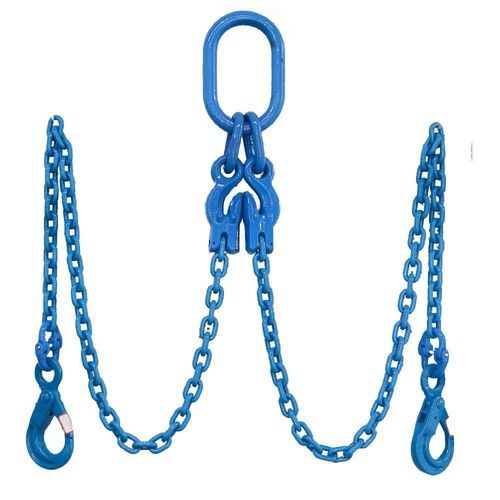

Grade 100 DOSL Chain Sling is a double-leg lifting assembly manufactured from quenched and tempered Grade 100 alloy steel chain and components. The sling is fitted with a Grade 100 oblong master link on the top and two Grade 100 self-locking hooks on the bottom, providing secure two-point load attachment and enhanced lifting safety. Compared with Grade 80 slings, the Grade 100 design offers approximately 25% higher Working Load Limit for the same chain size. Each sling is permanently identified with a serial number, chain size, grade, exact sling length, and Working Load Limit to ensure complete product traceability.

Introduction
Grade 100 DOSL Chain Sling is suitable for heavy-duty lifting applications requiring secure two-point load attachment and enhanced operational safety. The self-locking hooks automatically close and lock when the load is engaged, reducing the risk of accidental disengagement. The double-leg configuration distributes lifting forces evenly between two lifting points for improved load stability.

Product Configuration Code

• D = Double Leg
• O = Oblong Master Link
• SL = Self Locking Hook

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Standards & Manufacturing

• Name: Grade 100 DOSL Chain Sling – Double Leg w/ Oblong Master Link on Top and Two Self Locking Hooks on Bottom
• MOQ: 100 Sets
• Package: Carton + Steel Pallet
• Manufacturing Standards: Manufactured from quenched and tempered Grade 100 alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-3, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 requirements for Grade 100 lifting chain sling assemblies.
• Testing Standards: Minimum design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. Chain complies with EN 818 fatigue requirements and is designed to withstand 20,000 load cycles at 1.5 times the Working Load Limit (WLL). Every sling is supplied with an individual serial number, identification tag, written certification, and traceability records.
• Application Standards: Suitable for overhead lifting, two-point lifting, heavy machinery handling, structural steel erection, equipment installation, offshore lifting, mining maintenance, and industrial material handling operations.
• Maintenance Standards: Inspect before each use for chain elongation, excessive wear, cracks, corrosion, self-locking hook operation, deformation, damaged master links or connecting links, and missing identification tags. Remove from service if defects exceed inspection criteria.

Meter table
Item No. | Diameter of Lifting Chain (mm) | 1 Leg (ton) | 2 Legs 0°<α<45° (ton) | 2 Legs 45°<α<60° (ton) | 3 & 4 Legs 0°<α<45° (ton) | 3 & 4 Legs 45°<α<60° (ton) | Continuous Sling (ton)
TPL81841004 | 4 | 0.63 | 0.88 | 0.63 | 1.32 | 0.94 | 1
TPL81841005 | 5 | 1 | 1.4 | 1 | 2.1 | 1.5 | 1.6
TPL81841006 | 6 | 1.4 | 1.96 | 1.4 | 2.94 | 2.1 | 2.24
TPL81841007 | 7 | 1.9 | 2.66 | 1.9 | 3.99 | 2.85 | 3.04
TPL81841008 | 8 | 2.5 | 3.5 | 2.5 | 5.25 | 3.75 | 4
TPL818410010 | 10 | 4 | 5.6 | 4 | 8.4 | 6 | 6.4
TPL818410013 | 13 | 6.7 | 9.38 | 6.7 | 14.07 | 10.05 | 10.72
TPL818410016 | 16 | 10.3 | 14.4 | 10.3 | 21.6 | 15.4 | 16.4
TPL818410018 | 18 | 12.5 | 17.5 | 12.5 | 26.2 | 18.75 | 20
TPL818410019 | 19 | 14 | 19.6 | 14 | 29.4 | 21 | 22.4
TPL818410020 | 20 | 16 | 22.4 | 16 | 33.6 | 24 | 25.6
TPL818410022 | 22 | 19.4 | 27.1 | 19.4 | 40.7 | 29.1 | 31
TPL818410026 | 26 | 26.5 | 37.1 | 26.5 | 55.6 | 39.7 | 42.4
TPL818410028 | 28 | 30.5 | 42.7 | 30.5 | 64 | 45.7 | 48.8
TPL818410030 | 30 | 35.5 | 49.7 | 35.5 | 74.5 | 53.2 | 56.8
TPL818410032 | 32 | 40 | 56 | 40 | 84 | 60.6 | 64
TPL818410036 | 36 | 50 | 70 | 50 | 105 | 75 | 80
TPL818410038 | 38 | 56.5 | 78.4 | 56.5 | 118.6 | 84.7 | 90.4
TPL818410040 | 40 | 62.5 | 87.5 | 62.5 | 131.2 | 93.7 | 100
TPL818410045 | 45 | 81 | 113.4 | 81 | 170.1 | 121.5 | 129.6
TPL818410050 | 50 | 98 | 137.2 | 98 | 205.8 | 147 | 156.8

Feet table
Item No. | Trade Size (in.) | 1 Leg (90°) (lbs) | 2 Legs 0°<α<45° (lbs) | 2 Legs 45°<α<60° (lbs) | 3 & 4 Legs 0°<α<45° (lbs) | 3 & 4 Legs 45°<α<60° (lbs) | Continuous Sling (lbs)
TPL81841004 | 5/32" | 2,205 | 2,205 | 2,205 | 2,205 | 2,205 | 2,205
TPL81841005 | 3/16" | 2,205 | 2,205 | 2,205 | 4,409 | 4,409 | 4,409
TPL81841006 | 1/4" | 2,205 | 4,409 | 2,205 | 6,614 | 4,409 | 4,409
TPL81841007 | 9/32" | 4,409 | 6,614 | 4,409 | 8,819 | 6,614 | 6,614
TPL81841008 | 5/16" | 6,614 | 8,819 | 6,614 | 11,023 | 8,819 | 8,819
TPL81841010 | 3/8" | 8,819 | 13,228 | 8,819 | 17,637 | 13,228 | 13,228
TPL81841013 | 1/2" | 15,432 | 19,842 | 15,432 | 30,865 | 22,046 | 24,251
TPL81841016 | 5/8" | 22,046 | 30,865 | 22,046 | 48,502 | 33,069 | 35,274
TPL81841018 | 3/4" | 28,660 | 39,683 | 28,660 | 57,320 | 41,888 | 44,092
TPL81841019 | 3/4" | 30,865 | 44,092 | 30,865 | 63,934 | 46,297 | 48,502
TPL81841020 | 13/16" | 35,274 | 48,502 | 35,274 | 74,957 | 52,911 | 57,320
TPL81841022 | 7/8" | 41,888 | 59,525 | 41,888 | 90,390 | 63,934 | 68,343
TPL81841026 | 1" | 59,525 | 81,571 | 59,525 | 123,459 | 88,185 | 92,594
TPL81841028 | 1-1/8" | 68,343 | 94,798 | 68,343 | 141,096 | 101,412 | 108,026
TPL81841030 | 1-3/16" | 79,366 | 110,231 | 79,366 | 165,347 | 116,845 | 125,664
TPL81841032 | 1-1/4" | 88,185 | 123,459 | 88,185 | 185,188 | 134,482 | 141,096
TPL81841036 | 1-3/8" | 110,231 | 154,323 | 110,231 | 231,485 | 165,347 | 176,370
TPL81841038 | 1-1/2" | 125,664 | 171,960 | 125,664 | 262,350 | 187,393 | 198,416
TPL81841040 | 1-9/16" | 138,891 | 194,007 | 138,891 | 288,806 | 207,234 | 220,462
TPL81841045 | 1-3/4" | 178,574 | 249,122 | 178,574 | 374,786 | 268,964 | 286,601
TPL81841050 | 2" | 216,053 | 302,033 | 216,053 | 454,152 | 324,079 | 346,126

Notes

• Each sling is permanently identified and traceable with serial number, size, grade, exact length and WLL.
• Design factor: 4:1. Proof tested and inspected prior to shipment.

Caractéristiques / spécifications techniques

• Product type: Grade 100 DOSL Chain Sling (Double Leg with Oblong Master Link on top and two Self Locking Hooks on bottom)
• Material: Quenched and tempered Grade 100 alloy steel chain and Grade 100 components
• Configuration: Double leg (DOSL)
• Identification: Permanent serial number, chain size, chain grade, exact sling length, WLL
• Standards: EN 818-2, EN 1677-1, EN 1677-3, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077
• Design factor: 4:1
• Testing: Proof tested, visually inspected, dimensionally verified; chain complies with EN 818 fatigue requirements (20,000 cycles at 1.5×WLL)
• Package: Carton + Steel Pallet
• MOQ: 100 Sets
