Introduction

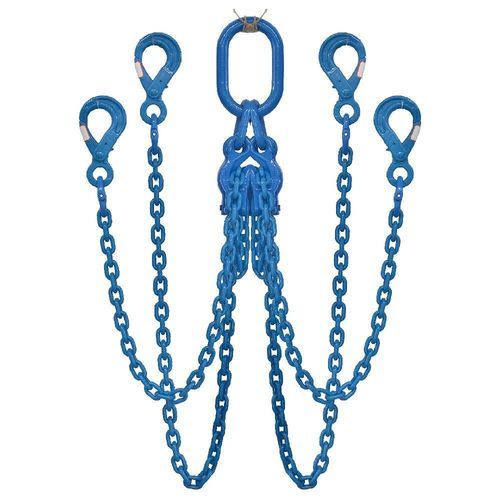

Grade 100 QOSL Chain Sling is a four-leg lifting assembly manufactured from quenched and tempered Grade 100 alloy steel chain and components. The sling is fitted with a quad oblong master link assembly on the top and four Grade 100 self-locking safety hooks on the bottom, providing secure multi-point load attachment and enhanced lifting safety. Compared with Grade 80 slings, the Grade 100 design offers approximately 25% higher Working Load Limit for the same chain size. Each sling is permanently identified with a serial number, chain size, grade, exact sling length, and Working Load Limit to ensure complete product traceability.

Key Features

• Quad-leg configuration for even load distribution and excellent load stability.
• Quad oblong master link assembly on top for multi-point attachment.
• Four Grade 100 self-locking (safety) hooks on the bottom to reduce risk of accidental disengagement.
• Manufactured from quenched and tempered Grade 100 alloy steel for higher WLL compared to Grade 80.
• Each sling permanently identified with individual serial number, chain size, grade, exact sling length and WLL for traceability.
• Proof tested, visually inspected and dimensionally verified prior to shipment.

Product Configuration Code

• Q = Quad Leg
• O = Quad Oblong Master Link Assembly
• SL = Self Locking (Safety) Hook

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Standards & Testing

• Manufacturing Standards: Manufactured from quenched and tempered Grade 100 alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-3, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 requirements for Grade 100 lifting chain sling assemblies.
• Design Factor: Minimum design factor 4:1.
• Testing: Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. The chain complies with EN 818 fatigue requirements and withstands 20,000 load cycles at 1.5 times the WLL.
• Supply: Every sling is supplied with an individual serial number, identification tag, written certification, and complete traceability records.
• Applications: Suitable for overhead lifting, multi-point lifting, heavy machinery handling, structural steel erection, offshore lifting, precast concrete installation, wind power projects, and industrial material handling.
• Maintenance: Inspect before each use for chain elongation, excessive wear, cracks, corrosion, self-locking hook operation, deformation, damaged master links or connecting links, and missing identification tags. Remove from service if defects exceed inspection criteria.

Parameter - Meter table
Item NO. | Diameter of Lifting Chain | 1 Leg | 2 Legs (0°<α<45°) | 2 Legs (45°<α<60°) | 3 & 4 Legs (0°<α<45°) | 3 & 4 Legs (45°<α<60°) | Continuous Sling
TPL81841004 | 4 | 0.63 | 0.88 | 0.63 | 1.32 | 0.94 | 1
TPL81841005 | 5 | 1 | 1.4 | 1 | 2.1 | 1.5 | 1.6
TPL81841006 | 6 | 1.4 | 1.96 | 1.4 | 2.94 | 2.1 | 2.24
TPL81841007 | 7 | 1.9 | 2.66 | 1.9 | 3.99 | 2.85 | 3.04
TPL81841008 | 8 | 2.5 | 3.5 | 2.5 | 5.25 | 3.75 | 4
TPL818410010 | 10 | 4 | 5.6 | 4 | 8.4 | 6 | 6.4
TPL818410013 | 13 | 6.7 | 9.38 | 6.7 | 14.07 | 10.05 | 10.72
TPL818410016 | 16 | 10.3 | 14.4 | 10.3 | 21.6 | 15.4 | 16.4
TPL818410018 | 18 | 12.5 | 17.5 | 12.5 | 26.2 | 18.75 | 20
TPL818410019 | 19 | 14 | 19.6 | 14 | 29.4 | 21 | 22.4
TPL818410020 | 20 | 16 | 22.4 | 16 | 33.6 | 24 | 25.6
TPL818410022 | 22 | 19.4 | 27.1 | 19.4 | 40.7 | 29.1 | 31
TPL818410026 | 26 | 26.5 | 37.1 | 26.5 | 55.6 | 39.7 | 42.4
TPL818410028 | 28 | 30.5 | 42.7 | 30.5 | 64 | 45.7 | 48.8
TPL818410030 | 30 | 35.5 | 49.7 | 35.5 | 74.5 | 53.2 | 56.8
TPL818410032 | 32 | 40 | 56 | 40 | 84 | 60.6 | 64
TPL818410036 | 36 | 50 | 70 | 50 | 105 | 75 | 80
TPL818410038 | 38 | 56.5 | 78.4 | 56.5 | 118.6 | 84.7 | 90.4
TPL818410040 | 40 | 62.5 | 87.5 | 62.5 | 131.2 | 93.7 | 100
TPL818410045 | 45 | 81 | 113.4 | 81 | 170.1 | 121.50. | 129.6
TPL818410050 | 50 | 98 | 137.2 | 98 | 205.8 | 147 | 156.8

Parameter - Feet table
Item No. | Diameter of Lifting Chain | 1 Leg (90°) | 2 Legs (0°<α<45°) | 2 Legs (45°<α<60°) | 3 & 4 Legs (0°<α<45°) | 3 & 4 Legs (45°<α<60°) | Continuous Sling
TPL81841004 | 5/32 | 2,205 | 2,205 | 2,205 | 2,205 | 2,205 | 2,205
TPL81841005 | 3/16 | 2,205 | 2,205 | 2,205 | 4,409 | 4,409 | 4,409
TPL81841006 | 1/4 | 2,205 | 4,409 | 2,205 | 6,614 | 4,409 | 4,409
TPL81841007 | 9/32 | 4,409 | 6,614 | 4,409 | 8,819 | 6,614 | 6,614
TPL81841008 | 5/16 | 6,614 | 8,819 | 6,614 | 11,023 | 8,819 | 8,819
TPL81841010 | 3/8 | 8,819 | 13,228 | 8,819 | 17,637 | 13,228 | 13,228
TPL81841013 | 1/2 | 15,432 | 19,842 | 15,432 | 30,865 | 22,046 | 24,251
TPL81841016 | 5/8 | 22,046 | 30,865 | 22,046 | 48,502 | 33,069 | 35,274
TPL81841018 | 3/4 | 28,660 | 39,683 | 28,660 | 57,320 | 41,888 | 44,092
TPL81841019 | 3/4 | 30,865 | 44,092 | 30,865 | 63,934 | 46,297 | 48,502
TPL81841020 | 13/16 | 35,274 | 48,502 | 35,274 | 74,957 | 52,911 | 57,320
TPL81841022 | 7/8 | 41,888 | 59,525 | 41,888 | 90,390 | 63,934 | 68,343
TPL81841026 | 1 | 59,525 | 81,571 | 59,525 | 123,459 | 88,185 | 92,594
TPL81841028 | 1-1/8 | 68,343 | 94,798 | 68,343 | 141,096 | 101,412 | 108,026
TPL81841030 | 1-3/16 | 79,366 | 110,231 | 79,366 | 165,347 | 116,845 | 125,664
TPL81841032 | 1-1/4 | 88,185 | 123,459 | 88,185 | 185,188 | 134,482 | 141,096
TPL81841036 | 1-3/8 | 110,231 | 154,323 | 110,231 | 231,485 | 165,347 | 176,370
TPL81841038 | 1-1/2 | 125,664 | 171,960 | 125,664 | 262,350 | 187,393 | 198,416
TPL81841040 | 1-9/16 | 138,891 | 194,007 | 138,891 | 288,806 | 207,234 | 220,462
TPL81841045 | 1-3/4 | 178,574 | 249,122 | 178,574 | 374,786 | 268,964 | 286,601
TPL81841050 | 2 | 216,053 | 302,033 | 216,053 | 454,152 | 324,079 | 346,126

Caractéristiques / spécifications techniques

• Product Name: Grade 100 QOSL Chain Sling - Quad Leg w/ Quad Oblong Master Link on Top and Four Self Locking (Safety) Hooks on Bottom
• Denomination commerciale (model): Grade 100 QOSL Chain Sling
• Material: Quenched and tempered Grade 100 alloy steel chain and components
• Configuration: Quad leg with quad oblong master link and four self-locking safety hooks
• Identification: Individual serial number, chain size, chain grade, exact sling length, WLL
• Design factor: 4:1
• Manufacturing & testing standards: EN 818-2, EN 1677-1, EN 1677-3, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077; proof tested and meets EN 818 fatigue requirements (20,000 cycles @ 1.5×WLL)
• MOQ: 100 Sets
• Package: Carton + Steel Pallet
• Typical applications: Overhead lifting, multi-point lifting, heavy machinery, structural steel, offshore, precast concrete, wind power, industrial material handling
