Chain sling 100 DOG

2-pointsteel

Product Overview

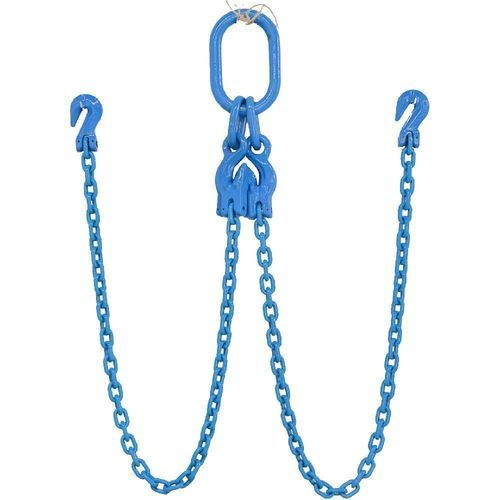

Grade 100 DOG chain sling is a double-leg lifting assembly manufactured from quenched and tempered Grade 100 alloy steel chain and components. The sling is fitted with a Grade 100 oblong master link on the top and two Grade 100 grab hooks on the bottom, providing adjustable chain lengths and secure two-point lifting for overhead applications. Compared with Grade 80 slings, the Grade 100 design offers approximately 25% higher Working Load Limit for the same chain size. Each sling is permanently identified with a serial number, chain size, grade, exact sling length, and Working Load Limit to ensure complete product traceability.

Key Characteristics

• Sling style: Double-leg (DOG) chain sling with oblong master link on top and two grab hooks on bottom
• Material: Quenched and tempered Grade 100 alloy steel chain and components
• Adjustable chain lengths via Grade 100 grab hooks for quick leg shortening
• Identification: Permanent tag with individual serial number, chain size, grade, exact sling length, and WLL
• Design factor: 4:1 minimum design factor

Product Configuration Code

• D = Double Leg
• O = Oblong Master Link
• G = Grab Hook

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Standards & Testing
Manufactured in accordance with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 requirements for Grade 100 lifting chain sling assemblies. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility prior to shipment. The chain meets EN 818 fatigue requirements and is tested to withstand 20,000 load cycles at 1.5× the WLL. Every sling is supplied with an individual serial number, identification tag, written certification, and traceability records.

Applications
Suitable for overhead lifting, two-point lifting, heavy machinery handling, structural steel erection, equipment installation, precast concrete handling, mining maintenance, and industrial material handling operations.

Maintenance & Inspection
Inspect before each use for chain elongation, excessive wear, cracks, corrosion, grab hook deformation or wear, damaged master links, connecting links, and missing identification tags. Remove the sling from service immediately if defects exceed applicable inspection criteria.

Technical Specifications

• Product name: Grade 100 DOG Chain Sling – Double Leg w/ Oblong Master Link Top and Grab Hooks on Bottom
• Material: Grade 100 quenched & tempered alloy steel
• Top fitting: Grade 100 oblong master link
• Bottom fittings: Two Grade 100 grab hooks (adjustable)
• Design factor: 4:1
• Traceability: Individual serial number, identification tag, written certification
• Minimum order quantity (MOQ): 100 sets
• Package: Carton + steel pallet
• Testing: Proof tested, visually inspected, dimensionally verified; chain complies with EN 818 fatigue requirements and tested to 20,000 cycles at 1.5×WLL
