Chain sling Grade 100 QOG

4-pointsteel alloy

Product Overview

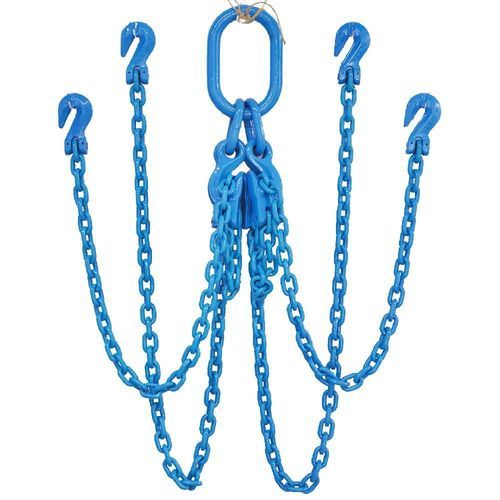

Grade 100 QOG Chain Sling is a four-leg lifting assembly manufactured from quenched and tempered Grade 100 alloy steel chain and components. The sling is fitted with a quad oblong master link assembly on the top and four Grade 100 grab hooks on the bottom, providing adjustable chain lengths and flexible four-point lifting. Compared with Grade 80 slings, the Grade 100 design offers approximately 25% higher Working Load Limit for the same chain size. Each sling is permanently identified with a serial number, chain size, grade, exact sling length, and Working Load Limit to ensure complete product traceability.

Introduction / Key Features

• Quad-leg chain sling design for four-point lifting and balanced load distribution.
• Top assembly: Quad oblong master link.
• Bottom fittings: Four Grade 100 grab hooks (adjustable chain length by engaging individual chain links).
• Material: Quenched and tempered Grade 100 alloy steel chain and components.
• Approximately 25% higher WLL vs Grade 80 for the same chain size.
• Design factor: 4:1.
• Permanent identification: individual serial number, chain size, grade, exact sling length, and WLL for traceability.

Product Configuration Code

• Q = Quad Leg
• O = Quad Oblong Master Link Assembly
• G = Grab Hook

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Meter table
Item NO. | Diameter of Lifting Chain (mm) | 1 Leg (ton) | 2 Legs (0°<α<45°) (ton) | 2 Legs (45°<α<60°) (ton) | 3 & 4 Legs (0°<α<45°) (ton) | 3 & 4 Legs (45°<α<60°) (ton) | Continuous Sling (ton)
TPL81841004 | 4 | 0.63 | 0.88 | 0.63 | 1.32 | 0.94 | 1
TPL81841005 | 5 | 1 | 1.4 | 1 | 2.1 | 1.5 | 1.6 | 2
TPL81841006 | 6 | 1.4 | 1.96 | 1.4 | 2.94 | 2.1 | 2.24 | 2
TPL81841007 | 7 | 1.9 | 2.66 | 1.9 | 3.99 | 2.85 | 3.04 | 3
TPL81841008 | 8 | 2.5 | 3.5 | 2.5 | 5.25 | 3.75 | 4 | 4
TPL818410010 | 10 | 4 | 5.6 | 4 | 8.4 | 6 | 6.4 | 6
TPL818410013 | 13 | 6.7 | 9.38 | 6.7 | 14.07 | 10.05 | 10.72 | 11
TPL818410016 | 16 | 10.3 | 14.4 | 10.3 | 21.6 | 15.4 | 16.4 | 16
TPL818410018 | 18 | 12.5 | 17.5 | 12.5 | 26.2 | 18.75 | 20 | 20
TPL818410019 | 19 | 14 | 19.6 | 14 | 29.4 | 21 | 22.4 | 22
TPL818410020 | 20 | 16 | 22.4 | 16 | 33.6 | 24 | 25.6 | 26
TPL818410022 | 22 | 19.4 | 27.1 | 19.4 | 40.7 | 29.1 | 31 | 31
TPL818410026 | 26 | 26.5 | 37.1 | 26.5 | 55.6 | 39.7 | 42.4 | 42
TPL818410028 | 28 | 30.5 | 42.7 | 30.5 | 64 | 45.7 | 48.8 | 49
TPL818410030 | 30 | 35.5 | 49.7 | 35.5 | 74.5 | 53.2 | 56.8 | 57
TPL818410032 | 32 | 40 | 56 | 40 | 84 | 60.6 | 64 | 64
TPL818410036 | 36 | 50 | 70 | 50 | 105 | 75 | 80 | 80
TPL818410038 | 38 | 56.5 | 78.4 | 56.5 | 118.6 | 84.7 | 90.4 | 90
TPL818410040 | 40 | 62.5 | 87.5 | 62.5 | 131.2 | 93.7 | 100 | 100
TPL818410045 | 45 | 81 | 113.4 | 81 | 170.1 | 121.5 | 129.6 | 130
TPL818410050 | 50 | 98 | 137.2 | 98 | 205.8 | 147 | 156.8 | 157

Feet table
Item No. | Diameter of Lifting Chain (in.) | 1 Leg (90°) (lbs) | 2 Legs Factor 1.4 (lbs) | 2 Legs Factor 1.0 (lbs) | 2 Legs Factor 2.1 (lbs) | 3 & 4 Legs Factor 1.5 (lbs) | 3 & 4 Legs Factor 1.6 (lbs)
TPL81841004 | 5/32 | 2,205 | 2,205 | 2,205 | 2,205 | 2,205 | 2,205
TPL81841005 | 3/16 | 2,205 | 2,205 | 2,205 | 4,409 | 4,409 | 4,409
TPL81841006 | 1/4 | 2,205 | 4,409 | 2,205 | 6,614 | 4,409 | 4,409
TPL81841007 | 9/32 | 4,409 | 6,614 | 4,409 | 8,819 | 6,614 | 6,614
TPL81841008 | 5/16 | 6,614 | 8,819 | 6,614 | 11,023 | 8,819 | 8,819
TPL81841010 | 3/8 | 8,819 | 13,228 | 8,819 | 17,637 | 13,228 | 13,228
TPL81841013 | 1/2 | 15,432 | 19,842 | 15,432 | 30,865 | 22,046 | 24,251
TPL81841016 | 5/8 | 22,046 | 30,865 | 22,046 | 48,502 | 33,069 | 35,274
TPL81841018 | 3/4 | 28,660 | 39,683 | 28,660 | 57,320 | 41,888 | 44,092
TPL81841019 | 3/4 | 30,865 | 44,092 | 30,865 | 63,934 | 46,297 | 48,502
TPL81841020 | 13/16 | 35,274 | 48,502 | 35,274 | 74,957 | 52,911 | 57,320
TPL81841022 | 7/8 | 41,888 | 59,525 | 41,888 | 90,390 | 63,934 | 68,343
TPL81841026 | 1 | 59,525 | 81,571 | 59,525 | 123,459 | 88,185 | 92,594
TPL81841028 | 1-1/8 | 68,343 | 94,798 | 68,343 | 141,096 | 101,412 | 108,026
TPL81841030 | 1-3/16 | 79,366 | 110,231 | 79,366 | 165,347 | 116,845 | 125,664
TPL81841032 | 1-1/4 | 88,185 | 123,459 | 88,185 | 185,188 | 134,482 | 141,096
TPL81841036 | 1-3/8 | 110,231 | 154,323 | 110,231 | 231,485 | 165,347 | 176,370
TPL81841038 | 1-1/2 | 125,664 | 171,960 | 125,664 | 262,350 | 187,393 | 198,416
TPL81841040 | 1-9/16 | 138,891 | 194,007 | 138,891 | 288,806 | 207,234 | 220,462
TPL81841045 | 1-3/4 | 178,574 | 249,122 | 178,574 | 374,786 | 268,964 | 286,601
TPL81841050 | 2 | 216,053 | 302,033 | 216,053 | 454,152 | 324,079 | 346,126

Standards & Testing (summarized)
Manufactured from quenched and tempered Grade 100 alloy steel chain and components. Complies with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 for Grade 100 lifting chain sling assemblies. Minimum design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. Chain complies with EN 818 fatigue requirements and withstands 20,000 load cycles at 1.5 times the WLL. Every sling is supplied with an individual serial number, identification tag, written certification, and traceability records.

Maintenance & Application Notes
Suitable for overhead lifting, four-point lifting, heavy machinery handling, structural steel erection, precast concrete installation, offshore lifting, mining maintenance, and industrial material handling. Inspect before each use for chain elongation, excessive wear, cracks, corrosion, grab hook deformation or wear, damaged master links or connecting links, and missing identification tags. Remove from service if defects exceed applicable inspection criteria.

caractéristiques / spécifications techniques

• Commercial name: Grade 100 QOG Chain Sling
• Model/Type: QOG (Quad Leg with Quad Oblong Master Link and Grab Hooks)
• Material: Quenched & tempered Grade 100 alloy steel
• Top fitting: Quad oblong master link assembly
• Bottom fittings: Four Grade 100 grab hooks (adjustable)
• Identification: Individual serial number; identification tag with chain size, grade, exact sling length, and WLL
• Design factor: 4:1
• Performance: ~25% higher WLL than Grade 80 for the same chain size
• Testing: Proof tested, inspected, EN 818 fatigue compliance, 20,000 cycles at 1.5×WLL
• MOQ: 100 Sets
• Packaging: Carton + Steel Pallet
• Applications: Heavy-duty and four-point lifting, offshore, mining, construction, precast, industrial handling
