Chain sling Grade 80 TOG

3-pointsteelalloy

Overview

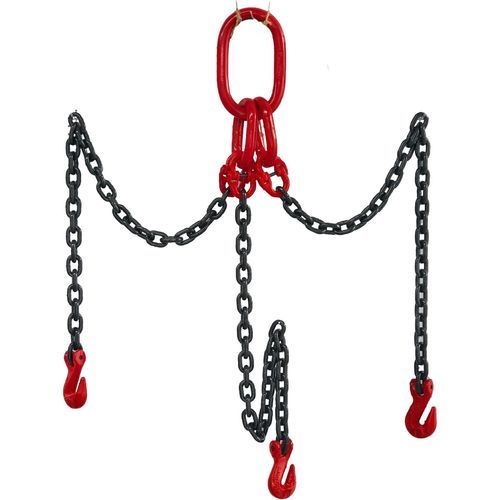

Grade 80 TOG Chain Sling is a triple-leg lifting assembly manufactured from quenched and tempered Grade 80 alloy steel chain and components. The sling is fitted with a quad oblong master link assembly on the top and Grade 80 grab hooks on the bottom, suitable for lifting applications requiring adjustable chain lengths and secure multi-point load attachment.

Key features

• Triple-leg configuration for improved load stability and balanced force distribution.
• Quad oblong master link assembly on top for multi-point attachment.
• Grade 80 grab hooks on bottom allowing chain length adjustment by engaging individual chain links.
• Adjustable effective chain length without additional shortening devices.
• Supplied with individual serial number, identification tag and written certification for traceability.

Product Configuration Code

• T = Triple Leg
• O = Quad Oblong Master Link Assembly
• G = Grab Hook

Product Identification

• Each sling is permanently identified with an individual serial number.
• Identification includes chain size, chain grade, exact sling length and Working Load Limit (WLL).

Typical Applications

• Heavy machinery handling
• Structural steel lifting and erection
• Precast concrete installation
• Equipment installation
• Mining maintenance
• Industrial material handling

Manufacturing, Testing and Application Standards
Manufactured from Grade 80 quenched and tempered alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077. Minimum design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. Chain complies with EN 818 fatigue requirements and withstands 20,000 cycles at 1.5× WLL. Supplied with individual serial number, identification tag, written certification and full traceability records.

Maintenance
Inspect before each use for chain elongation, wear, cracks, corrosion, grab hook wear or deformation, damaged master links, connecting links, and missing identification tags. Remove from service immediately if defects exceed applicable inspection criteria.

Supply & Packaging
MOQ: 100 Sets
Package: Carton + Steel Pallet

Parameter — Meter table
Diameter of Lifting Chain (mm) | 1 Leg (ton) | 2 Legs 0°–45° (ton) | 2 Legs 45°–60° (ton) | 3 & 4 Legs 0°–45° (ton) | 3 & 4 Legs 45°–60° (ton) | Continuous Sling (ton)
4 | 0.5 | 0.71 | 0.5 | 1.06 | 0.75 | 0.8
5 | 0.8 | 1.12 | 0.8 | 1.6 | 1.18 | 1.24
6 | 1.12 | 1.6 | 1.12 | 2.36 | 1.7 | 1.8
7 | 1.5 | 2.12 | 1.5 | 3.15 | 2.24 | 2.5
8 | 2 | 2.8 | 2 | 4.25 | 3 | 3.15
10 | 3.15 | 4.25 | 3.15 | 6.7 | 4.75 | 5
13 | 5.3 | 7.5 | 5.3 | 11.2 | 8 | 8.5
16 | 8 | 11.2 | 8 | 17 | 11.8 | 12.5
18 | 10 | 14 | 10 | 21 | 15 | 16
19 | 11.2 | 16 | 11.2 | 23.5 | 16.8 | 17.9
20 | 12.5 | 17 | 12.5 | 26.2 | 18.7 | 20
22 | 15 | 21.2 | 15 | 31.5 | 22.5 | 24
26 | 21.2 | 30 | 21.2 | 44.5 | 31.8 | 33.9
28 | 25 | 33.5 | 25 | 52.5 | 37.5 | 40
30 | 28 | 39.2 | 28 | 58.8 | 42 | 44.8
32 | 31.5 | 45 | 31.5 | 66.1 | 47.2 | 50.4
36 | 40 | 56 | 40 | 84 | 60 | 64
38 | 45 | 63 | 45 | 94.5 | 67.5 | 72
40 | 50 | 70 | 50 | 105 | 75 | 80
45 | 63 | 88.2 | 63 | 132.3 | 94.5 | 100.8
50 | 78.5 | 109.9 | 78.5 | 164.8 | 117.7 | 125.6

Parameter — Feet table (WLL in lbs)
Design Factor 4:1. Values below represent Working Load Limit (lbs) per chain diameter and sling configuration.
Chain Diameter | 1-Leg Sling | 2-Leg Sling 90° (1) | 2-Leg Sling 60° (1.7) | 2-Leg Sling 45° (1.4) | 3 & 4-Leg Sling 60° (2.6) | 3 & 4-Leg Sling 45° (2.1) | 3 & 4-Leg Sling 30° (1.45)
7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500

Notes

• Continuous Sling refers to Working Load Limit for an endless chain sling configuration.
• Angle a is the angle between the sling leg and the vertical. Smaller sling angles (measured from the horizontal) increase tension in each leg and reduce overall lifting capacity.

Technical specifications

• Name: Grade 80 TOG Chain Sling – Triple Leg w/ Quad Oblong Master Link on Top and Grab Hooks on Bottom
• Model / Denomination: TOG Chain Sling
• Material: Grade 80 quenched and tempered alloy steel chain and components
• Minimum design factor: 4:1
• Standards: EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077
• Testing: Proof tested, visually inspected, dimensionally verified; chain meets EN 818 fatigue (20,000 cycles at 1.5× WLL)
• Identification: Individual serial number and identification tag supplied with each sling
• MOQ: 100 Sets
• Packaging: Carton + Steel Pallet
