Chain sling Grade 80 QOG

4-pointsteelsteel alloy

Overview

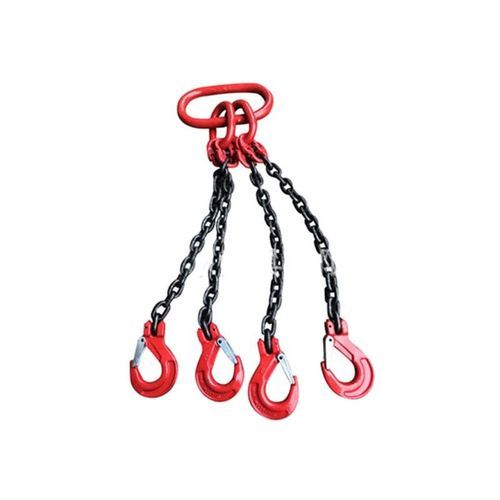

Grade 80 QOG chain sling is a quad-leg lifting assembly manufactured from quenched and tempered Grade 80 alloy steel chain and components. The sling features a quad oblong master link assembly at the top and Grade 80 grab hooks at the bottom, providing adjustable chain lengths and balanced load distribution for heavy-duty lifting. The four-leg configuration spreads lifting forces across four attachment points to improve stability with heavy or irregular loads. Grab hooks permit rapid shortening by engaging individual chain links without additional shortening devices.

Product Configuration Code

• Q = Quad Leg
• O = Quad Oblong Master Link Assembly
• G = Grab Hook

Product Identification

• Individual serial number
• Chain size
• Chain grade
• Exact sling length
• Working Load Limit (WLL) on identification tag

Typical Applications

• Heavy machinery handling
• Structural steel lifting
• Precast concrete installation
• Equipment installation
• Mining maintenance
• Industrial material handling

Parameters — Meter table (values in tons)
Diameter of lifting chain (mm) | 1 Leg (ton) | 2 Legs (0°4 | 0.5 | 0.71 | 0.5 | 1.06 | 0.75 | 0.8
5 | 0.8 | 1.12 | 0.8 | 1.6 | 1.18 | 1.24
6 | 1.12 | 1.6 | 1.12 | 2.36 | 1.7 | 1.8
7 | 1.5 | 2.12 | 1.5 | 3.15 | 2.24 | 2.5
8 | 2 | 2.8 | 2 | 4.25 | 3 | 3.15
10 | 3.15 | 4.25 | 3.15 | 6.7 | 4.75 | 5
13 | 5.3 | 7.5 | 5.3 | 11.2 | 8 | 8.5
16 | 8 | 11.2 | 8 | 17 | 11.8 | 12.5
18 | 10 | 14 | 10 | 21 | 15 | 16
19 | 11.2 | 16 | 11.2 | 23.5 | 16.8 | 17.9
20 | 12.5 | 17 | 12.5 | 26.2 | 18.7 | 20
22 | 15 | 21.2 | 15 | 31.5 | 22.5 | 24
26 | 21.2 | 30 | 21.2 | 44.5 | 31.8 | 33.9
28 | 25 | 33.5 | 25 | 52.5 | 37.5 | 40
30 | 28 | 39.2 | 28 | 58.8 | 42 | 44.8
32 | 31.5 | 45 | 31.5 | 66.1 | 47.2 | 50.4
36 | 40 | 56 | 40 | 84 | 60 | 64
38 | 45 | 63 | 45 | 94.5 | 67.5 | 72
40 | 50 | 70 | 50 | 105 | 75 | 80
45 | 63 | 88.2 | 63 | 132.3 | 94.5 | 100.8
50 | 78.5 | 109.9 | 78.5 | 164.8 | 117.7 | 125.6

Parameters — Feet table (selected values in lbs)
Design Factor 4:1 — Load values shown below are maximum WLL in pounds for each chain diameter and sling configuration.
Chain Diameter | 1-Leg Sling (lbs) | 2-Leg Sling 60° (lbs) | 2-Leg Sling 45° (lbs) | 2-Leg Sling 30° (lbs) | 3&4-Leg 60° (lbs) | 3&4-Leg 45° (lbs) | 3&4-Leg 30° (lbs)
7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500

Standards & Testing
Manufactured from Grade 80 quenched and tempered alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 for lifting chain sling assemblies. Each sling is produced with a minimum design factor of 4:1; proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. Chain complies with EN 818 fatigue requirements and withstands 20,000 cycles at 1.5× WLL. Every sling is supplied with an individual serial number, identification tag, written certification, and full traceability records.

Packaging & MOQ
MOQ: 100 Sets. Package: Carton + Steel Pallet.

Maintenance & Inspection
Inspect before each use for chain elongation, wear, cracks, corrosion, grab hook wear or deformation, damaged master links or connecting links, and missing identification tags. Remove from service if defects exceed inspection criteria.

Specifications / Technical Data

• Configuration: Quad-leg chain sling with quad oblong master link (top) and grab hooks (bottom)
• Material: Grade 80 quenched & tempered alloy steel (chain and components)
• Identification: Individual serial number, chain size, chain grade, exact sling length, WLL on identification tag
• Design factor: 4:1
• Testing: Proof tested; chain meets EN 818 fatigue requirement (20,000 cycles at 1.5× WLL)
• Standards: EN 818-2, EN 1677 series, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077
• MOQ: 100 Sets
• Packaging: Carton + Steel Pallet
• Typical applications: Heavy machinery, structural steel, precast concrete, equipment installation, mining, industrial material handling
