Chain sling Grade 100 TOG

3-pointsteelalloy

Introduction

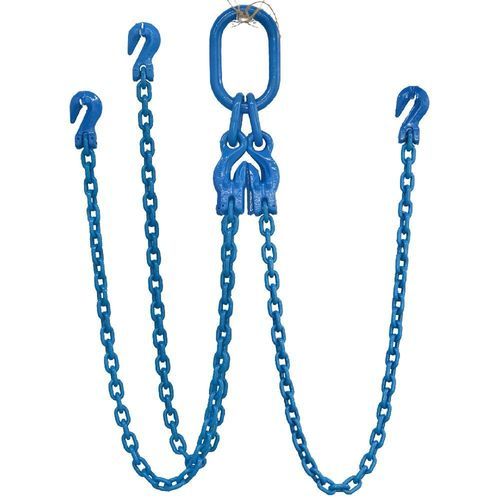

Grade 100 TOG Chain Sling is a triple-leg lifting assembly manufactured from quenched and tempered Grade 100 alloy steel chain and components. The sling is equipped with a quad oblong master link assembly on the top and three Grade 100 grab hooks on the bottom, making it suitable for heavy-duty lifting applications requiring adjustable chain lengths and balanced three-point load distribution.

Overview
Sling Style: Triple-leg (TOG)
Individualized Serial Number: Each sling is permanently identified with a serial number for traceability.
Chain Size & Grade: Manufactured from Grade 100 alloy steel chain and components.
Exact Length of the Sling: Supplied with exact sling length marking.
Working Load Limit: Marked on the sling; Grade 100 offers approximately 25% higher WLL than Grade 80 for the same chain size.

Product Details

• Grade: Grade 100 alloy steel chain and components.
• Top assembly: Quad oblong master link assembly.
• Bottom fittings: Three Grade 100 grab hooks providing adjustable chain lengths and flexible three-point lifting.
• Design factor: 4:1 minimum design factor.
• Identification: Each sling is permanently tagged with Individual Serial Number, Chain Size, Chain Grade, Exact Sling Length and Working Load Limit (WLL).

Product Configuration Code

• T = Triple Leg
• O = Quad Oblong Master Link Assembly
• G = Grab Hook

Product Identification

• Individual Serial Number
• Chain Size
• Chain Grade
• Exact Sling Length
• Working Load Limit (WLL)

Standards & Manufacturing

• Name: Grade 100 TOG Chain Sling – Triple Leg w/ Quad Oblong Master Link on Top and Three Grab Hooks on Bottom
• MOQ: 100 Sets
• Package: Carton + Steel Pallet
• Manufacturing Standards: Manufactured from quenched and tempered Grade 100 alloy steel chain and components in accordance with EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, and ISO 3077 requirements for Grade 100 lifting chain sling assemblies.
• Testing Standards: Minimum design factor 4:1. Each sling is proof tested, visually inspected, dimensionally verified, and checked for component compatibility before shipment. Chain complies with EN 818 fatigue requirements and withstands 20,000 load cycles at 1.5 times the WLL.
• Supply documentation: Every sling is supplied with an individual serial number, identification tag, written certification, and complete traceability records.
• Applications: Suitable for overhead lifting, three-point lifting, heavy machinery handling, structural steel erection, equipment installation, precast concrete handling, mining maintenance, and industrial material handling operations.
• Maintenance: Inspect before each use for chain elongation, excessive wear, cracks, corrosion, grab hook deformation, damaged master links or connecting links, and missing identification tags. Remove from service if defects exceed inspection criteria.

Meter table (Working Load Limit values by configuration)
Headers: Item NO., Diameter of Lifting Chain (mm), 1 Leg (ton), 2 Legs 0°<α<45° (ton), 2 Legs 45°<α<60° (ton), 3 & 4 Legs 0°<α<45° (ton), 3 & 4 Legs 45°<α<60° (ton), Continuous Sling (ton)
TPL81841004, 4, 1, 1, 1, 1, 1, 1
TPL81841005, 5, 1, 1.4, 1, 2.1, 1.5, 1.6
TPL81841006, 6, 1.4, 1.96, 1.4, 2.94, 2.1, 2.24
TPL81841007, 7, 1.9, 2.66, 1.9, 3.99, 2.85, 3.04
TPL81841008, 8, 2.5, 3.5, 2.5, 5.25, 3.75, 4
TPL818410010, 10, 4, 5.6, 4, 8.4, 6, 6.4
TPL818410013, 13, 6.7, 9.38, 6.7, 14.07, 10.05, 10.72
TPL818410016, 16, 10.3, 14.4, 10.3, 21.6, 15.4, 16.4
TPL818410018, 18, 12.5, 17.5, 12.5, 26.2, 18.75, 20
TPL818410019, 19, 14, 19.6, 14, 29.4, 21, 22.4
TPL818410020, 20, 16, 22.4, 16, 33.6, 24, 25.6
TPL818410022, 22, 19.4, 27.1, 19.4, 40.7, 29.1, 31
TPL818410026, 26, 26.5, 37.1, 26.5, 55.6, 39.7, 42.4
TPL818410028, 28, 30.5, 42.7, 30.5, 64, 45.7, 48.8
TPL818410030, 30, 35.5, 49.7, 35.5, 74.5, 53.2, 56.8
TPL818410032, 32, 40, 56, 40, 84, 60.6, 64
TPL818410036, 36, 50, 70, 50, 105, 75, 80
TPL818410038, 38, 56.5, 78.4, 56.5, 118.6, 84.7, 90.4
TPL818410040, 40, 62.5, 87.5, 62.5, 131.2, 93.7, 100
TPL818410045, 45, 81, 113.4, 81, 170.1, 121.5, 130
TPL818410050, 50, 98, 137.2, 98, 205.8, 147, 156.8

Feet table (Working Load Limit values in lbs by configuration)
Headers: Item No., Diameter of Lifting Chain (in.), 1 Leg (90°) (lbs), 2 Legs Factor 1.4 (lbs), 2 Legs Factor 1.0 (lbs?), 3 & 4 Legs Factor 2.1 (lbs), 3 & 4 Legs Factor 1.5 (lbs), Continuous Sling (lbs)
TPL81841004, 5/32, 2,205, 2,205, 2,205, 2,205, 2,205, 2,205
TPL81841005, 3/16, 2,205, 2,205, 2,205, 4,409, 4,409, 4,409
TPL81841006, 1/4, 2,205, 4,409, 2,205, 6,614, 4,409, 4,409
TPL81841007, 9/32, 4,409, 6,614, 4,409, 8,819, 6,614, 6,614
TPL81841008, 5/16, 6,614, 8,819, 6,614, 11,023, 8,819, 8,819
TPL81841010, 3/8, 8,819, 13,228, 8,819, 17,637, 13,228, 13,228
TPL81841013, 1/2, 15,432, 19,842, 15,432, 30,865, 22,046, 24,251
TPL81841016, 5/8, 22,046, 30,865, 22,046, 48,502, 33,069, 35,274
TPL81841018, 3/4, 28,660, 39,683, 28,660, 57,320, 41,888, 44,092
TPL81841019, 3/4, 30,865, 44,092, 30,865, 63,934, 46,297, 48,502
TPL81841020, 13/16, 35,274, 48,502, 35,274, 74,957, 52,911, 57,320
TPL81841022, 7/8, 41,888, 59,525, 41,888, 90,390, 63,934, 68,343
TPL81841026, 1, 59,525, 81,571, 59,525, 123,459, 88,185, 92,594
TPL81841028, 1-1/8, 68,343, 94,798, 68,343, 141,096, 101,412, 108,026
TPL81841030, 1-3/16, 79,366, 110,231, 79,366, 165,347, 116,845, 125,664
TPL81841032, 1-1/4, 88,185, 123,459, 88,185, 185,188, 134,482, 141,096
TPL81841036, 1-3/8, 110,231, 154,323, 110,231, 231,485, 165,347, 176,370
TPL81841038, 1-1/2, 125,664, 171,960, 125,664, 262,350, 187,393, 198,416
TPL81841040, 1-9/16, 138,891, 194,007, 138,891, 288,806, 207,234, 220,462
TPL81841045, 1-3/4, 178,574, 249,122, 178,574, 374,786, 268,964, 286,601
TPL81841050, 2, 216,053, 302,033, 216,053, 454,152, 324,079, 346,126

Characteristics / Specifications techniques

• Product type: Grade 100 TOG Chain Sling (TOG configuration: Triple Leg with Quad Oblong Master Link on top and three Grab Hooks on bottom)
• Material: Quenched and tempered Grade 100 alloy steel chain and Grade 100 components
• Top fitting: Quad oblong master link assembly
• Bottom fitting: Three Grade 100 grab hooks (adjustable length by engaging individual chain links)
• Design factor: 4:1
• Proof testing: Each sling proof tested, visually inspected, dimensionally verified; chain withstands 20,000 cycles at 1.5×WLL as per EN 818 fatigue requirements
• Traceability: Individual serial number, identification tag, written certification and sales order record
• Standards compliance: EN 818-2, EN 1677-1, EN 1677-2, EN 1677-4, ASME B30.9, OSHA 1910.184, AS 2321, ISO 3077
• MOQ: 100 Sets
• Packaging: Carton + Steel Pallet
• Applications: Overhead lifting, three-point lifting, heavy machinery handling, structural steel erection, equipment installation, precast concrete handling, mining maintenance, industrial material handling
