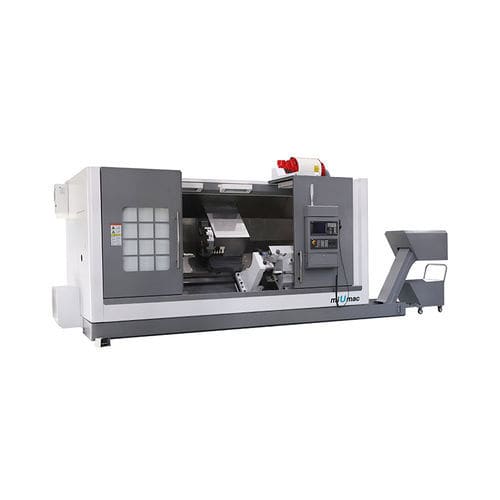

CNC turning center KDCL-35B2-axisslant bedA2-11
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-11
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- for complex parts, for shaft machining
- Performance
- high-rigidity, high-productivity, high-performance, precision, high-efficiency, high-capacity
- Diameter
700 mm
(27.56 in)- Spindle speed
1,600 rpm
(10,053.096 rad.min-1)- Maximum cutting diameter
600 mm
(24 in)- Maximum cutting length
1,500 mm
(59 in)- Axe X
325 mm
(13 in)- Axe Z
1,550 mm
(61 in)- Rapids on X
16 m/min
- Rapids on Z
12 m/min
- Nominal power
22 kW
(29.9 hp)- Overall lenght
6,200 mm
(244 in)- Overall width
1,980 mm
(78 in)- Overall height
2,260 mm
(89 in)- Weight
9,000 kg
(19,842 lb)
Description
X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.Convenient and stable automatic lubrication.
Item - Unit - KDCL-35B
Travel - -
Max.swing Dia. over bed - mm - Ø700
Max.cutting Dia. for disc parts - mm - Ø600
Max.cutting Dia. for axle parts - mm - Ø470
Max.cutting length (chuck end face to center) - mm - 1500
Distance from spindle center to ground - mm - 1150
Max.travel for axis X - mm - 325
Max.travel for axis Z - mm - 1550
Spindle - -
Spindle nose - - A₂-11
Spindle bore - mm - Ø105
Spindle drive mode - - belt drive
Max. spindle speed - rpm - 1600
Spindle motor power - kW - 22
Spindle front end diameter - mm - Ø160
Feed - -
X/Z axis rapid feed - m/min - 16/12
X/Z axis servo motor power - kW - 4/7
Turret - -
Tool post stations - - 12
Outer Dia. cutting tool shank - mm - 32×32
Max.inner Dia. cutting tool shank - mm - Ø50
Max. rotation speed of rotating tool - rpm - /
Power turret motor - kW - /
Rotating tool sleeve - - /
Tailstock - -
Tailstock sleeve diameter - mm - Ø120
Tailstock sleeve travel - mm - 200
Tailstock sleeve bore taper - - MT NO.6
Others - -
Bed structure - - 45°slant bed
Total power capacity - kVA - 40
Cooling pump power - W - 750
Lubrication pump capacity - L - 1.8
Overall dimensions （L×W×H） - mm - 6200×1980×2260
Net weight - kg - 9000
