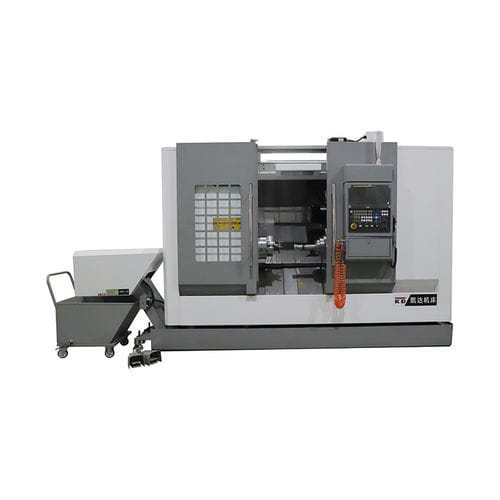

CNC turning center KDCL-15DY

4-axisslant bedA2-6

1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure. 2. The spindle component is of high rigidity construction to provide variable speed to realize constant linear speed cutting and high speed cutting. 3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy. Item - Unit - KDCL-15DY Travel -   -   Max.swing Dia. over bed - mm - Ø600 Max.cutting Dia. for disc parts - mm - Ø360 Max.cutting Dia. for axle parts - mm - Ø300 Max.cutting length for axle parts - mm - 500 Max.travel for axis X - mm - 235 Max.travel for axis Y - mm - ±50 Max.travel for axis Z - mm - 605 Max.travel for axis ZB - mm - 550 Spindle -   -   Main spindle nose -   - A₂-6 Main spindle bore - mm - Ø79 Main spindle max. speed - rpm - 4000 Main spindle motor power - kW - 18.5/22 Main spindle hydraulic chuck Dia. - inch - 8 Sub-spindle nose -   - A₂-5 Sub-spindle bore - mm - Ø56 Sub-spindle max.speed - rpm - 6000 Sub-spindle motor power - kW - 7.5/11 Sub-spindle hydraulic chuck Dia. - inch - 6 Feed -   -   X/Z/ZB axis rapid feed - m/min - - X/Y/Z/ZB axis rapid feed - m/min - 30/30/30/30 X/Z/ZB axis motor power - kW - - X/Y/Z/ZB axis motor power - kW - 4/4/4/4 Turret -   -   Tool post stations -   - 12 Outer Dia. cutting tool shank - mm - 25×25 Max.inner Dia. cutting tool shank - mm - Ø40 Live tool collet -   - ER32 Live motor power - kW - 3.7/5.5 Max. speed of power tool - rpm - 4000 Others -   -   Bed structure -   - 45° slant bed Total power capacity - kVA - 50 Cooling pump power - W - 750 Lubrication pump capacity - L - 1.8 Overall dimensions （L×W×H） - mm - 4300×2080×2500 （with chip conveyor） Net weight - kg - 5500
