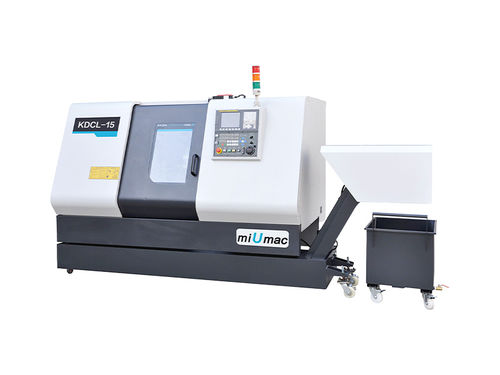

CNC turning center KDCL-15H2-axisslant bedA2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools
- Applications
- for automotive applications, for shaft machining, for complex parts
- Performance
- high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Diameter
360 mm
(14.17 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum cutting diameter
140 mm
(6 in)- Maximum cutting length
300 mm
(12 in)- Axe X
140 mm
(6 in)- Axe Z
320 mm
(13 in)- Rapids on X
12 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
2,700 mm
(106 in)- Overall width
1,460 mm
(57 in)- Overall height
1,680 mm
(66 in)- Weight
3,100 kg
(6,834 lb)
Description
Multifunctional CNC lathe
1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. The machine has 45° integrated slant bed with high rigidity and fluent chip removal.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
ITEMS - UNIT - KDCL-15H
Max. swing Dia. over bed - mm - Ø360
Max. cuting Dia. for disc parts - mm - Ø140
Max,cuting Dia. for axle parts - mm - Ø140
Max. cutting length for axle parts - mm - 300
Spindle - -
Spindle bore - mm - Ø56
Spindle nose - - A₂-5
Spindle speed - r/min - 6000
Travel - -
Max. travel of Axis X - mm - 140
Max. travel of Axis Z - mm - 320
Feed - -
Rapid feed for Axis X - m/min - 12
Rapid feed for Axis Z - m/min - 20
Turret - -
Tool post stations - - 12
Outside Dia. Cutting tool shank - mm - 20×20
Max.inner Dia. Cuting tool shank - mm - Ø32
Tailstock - -
Tailstock sleeve Dia. - mm - Ø80
Tailstock sleeve travel - mm - 90
Tailstock sleeve bore taper - - MT.No.4
Others - -
Power of main motor - kW - 7.5/11
Bed structure - - 45° Slant bed
Min. input - mm - 0.001
Repeatability - mm - ≤0.006
Chuck Dia. - - 6
Overall dimensions (L×WxH) - mm - 2700×1460×1680
Net weight - kg - 3100
Catalogs
No catalogs are available for this product.
See all of Zhejiang KAIDA Machine Tool CO., LTD.‘s catalogsOther Zhejiang KAIDA Machine Tool CO., LTD. products
