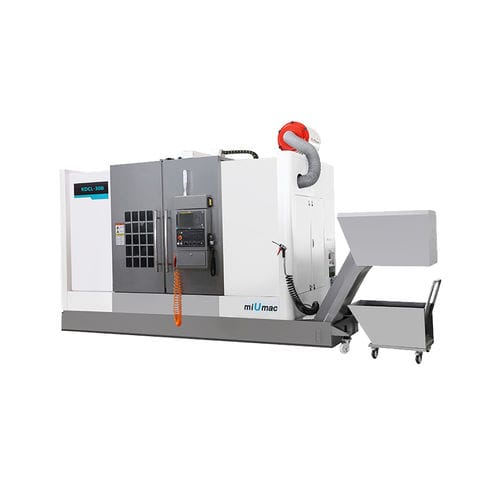

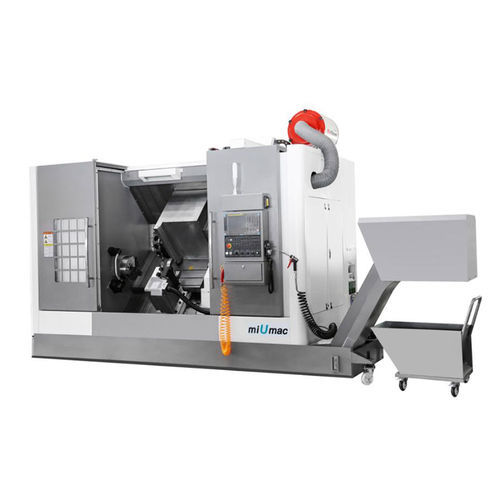

CNC turning center KDCL-30B

2-axisslant bedA2-11

Multifunctional CNC lathe 1. The machine adopts CNC system with full function and high reliability. 2. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure. Item - Unit - KDCL-30B Travel -   -   Max.swing Dia. over bed - mm - Ø600 Max.cutting Dia. for disc parts - mm - Ø500 Max.cutting Dia. for axle parts - mm - Ø320 Maximum cutting length (chuck end face to dead center) - mm - 1000 Distance from spindle center to ground  - mm - 1150 Max.travel for axis X - mm - 270 Max.travel for axis Z - mm - 1060 Spindle -   -   Spindle nose -   - A₂-11 Spindle bore - mm - Ø105 Spindle drive mode -   - belt drive Max. spindle speed - rpm - 1600 Spindle motor power - kW - 22 Spindle front end Dia. - mm - Ø160 Hydraulic chuck Dia. - inch -   Feed -   -   X/Z axis rapid feed - m/min - 16/12 X/Z axis servo motor power - kW - 3.1/3.1 Turret -   -   Tool post stations - pcs - 12 Outside Dia. Cuting tool shank - mm - 32×32 Max.inner Dia. cutting tool shank - mm - Ø50 Live tool motor power - kW - - Max. speed of Live tool - rpm - - Tailstock -   -   Tailstock sleeve Dia. - mm - Ø100 Tailstock sleeve travel - mm - 200 Tailstock sleeve bore taper -   - MT NO.6 Others -   -   Total power capacity - kVA - 40 Cooling pump power - W - 750 Lubrication pump capacity - L - 1.8 Overall dimensions （L×W×H） - mm - 5600×1900×2150  Net weight - kg - 8000 Precision - mm - IT5~6 Radial runout of spindle taper hole - mm - ≤0.003  X-axis positioning accuracy - mm - ≦0.008 Z axis positioning accuracy - mm - ≦0.016 X-axis repeat positioning accuracy - mm - ≦0.005 Z-axis repeat positioning accuracy - mm - ≦0.010 Processing workpiece roundness - mm - ≤0.005/Ø120  Processing workpiece cylindricity - mm - ≤0.010/Ø120×150 Processing workpiece flatness - mm - ≤0.02/Ø500  Processing workpiece surface roughness -   - ≤Ra1.25
