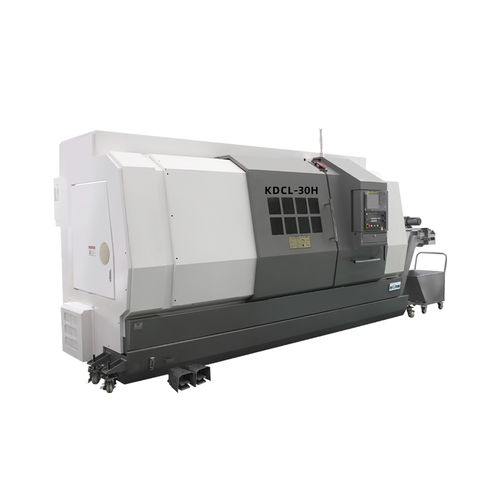

CNC turning center KDCL-30H2-axisslant bedA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-8
- Number of tool stations
- 12 tools
- Applications
- for shaft machining, for complex parts, for mass production
- Performance
- high-rigidity, high-productivity, high-performance
- Diameter
650 mm
(25.59 in)- Spindle speed
2,500 rpm
(15,707.963 rad.min-1)- Maximum part length
1,000 mm
(39 in)- Maximum cutting diameter
400 mm
(16 in)- Maximum cutting length
1,000 mm
(39 in)- Axe X
270 mm
(11 in)- Axe Z
1,060 mm
(42 in)- Rapids on X
16 m/min
- Rapids on Z
20 m/min
- Nominal power
18.5 kW, 22 kW
(25.2 hp, 29.9 hp)- Overall lenght
5,500 mm
(217 in)- Overall width
1,980 mm
(78 in)- Overall height
2,260 mm
(89 in)- Weight
7,500 kg
(16,535 lb)
Description
X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
