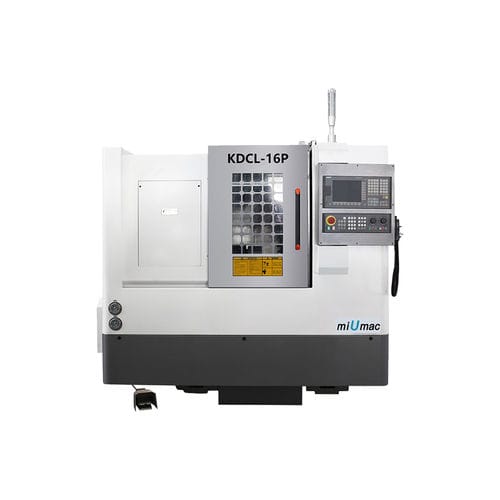

CNC turning center KDCL-16P

2-axisslant bedA2-5

Multifunctional CNC lathe 1. One-piece slant bed increases machines' rigidity and easy chip conveying. 2. X and Z axes adopt precision linear guide with no back-lash to result high rigidity and accuracy. 3. Convenient and stable automatic lubrication. Item - Unit - KDCL-16P Processing -   -   Max.swing Dia. over bed - mm - Ø320 Max.swing Dia. over slide - mm - Ø140 Max.processing length - mm - Ø260 Spindle system -   -   Spindle nose -   - A₂-5 Spindle bore - mm - Ø52 Spindle speed - rpm - 60-5000  Hydraulic Chuck Dia. -   - 6 Feed system -   -   X/Z rapid feed - m/min - 18/20 Travel -   -   Max.travel for axis X - mm - 320 Max.travel for axis Z - mm - 320 Turret -   -   Gang tool table size - mm - 250×670 Tool post type -   - Gang tool Standard outer dia. cutting tool shank - mm - 20 × 20  Max. inner dia. cutting tool shank - mm - Ø25 Others -   -   X/Z linear guide width - mm - 25/30 X lead screw Dia. × pitch -   - Ø25×10 Z lead screw Dia. × pitch -   - Ø32×10 Spindle motor power  - kW - 3.7 Bed structure -   - 45°slant bed X/Z positioning accuracy - mm - ≤0.006/0.006  X/Z repeat positioning accuracy - mm - ≤0.004/0.004 Cooling pump power - W - 180 Lubrication pump capacity - L - 1.8 Overall dimensions （L×W×H） - mm - 1950×1580×1730  Net weight - kg - 1800
