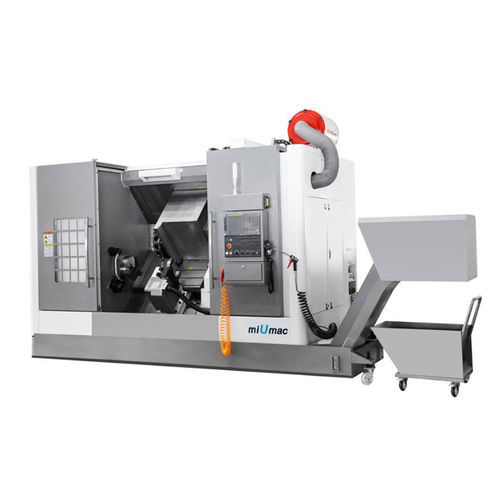

CNC turning center KDCL-30BH2-axisslant bedA2-11
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-11
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- for automotive applications, for complex parts, for shaft machining
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, precision, high-capacity
- Diameter
600 mm
(23.62 in)- Spindle speed
1,600 rpm
(10,053.096 rad.min-1)- Maximum cutting diameter
400 mm
(16 in)- Maximum cutting length
900 mm
(35 in)- Axe X
270 mm
(11 in)- Axe Z
1,060 mm
(42 in)- Rapids on X
16 m/min
- Rapids on Z
12 m/min
- Nominal power
18.5 kW, 22 kW
(25.2 hp, 29.9 hp)- Overall lenght
5,600 mm
(220 in)- Overall width
1,900 mm
(75 in)- Overall height
2,150 mm
(85 in)- Weight
8,000 kg
(17,637 lb)
Description
1. The machine adopts CNC system with full function and high reliability.
2. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
3. X and Z axes adopt box guide way to result high rigidity and accuracy.
Catalogs
No catalogs are available for this product.
See all of Zhejiang KAIDA Machine Tool CO., LTD.‘s catalogsOther Zhejiang KAIDA Machine Tool CO., LTD. products
Multifunctional CNC lathe
