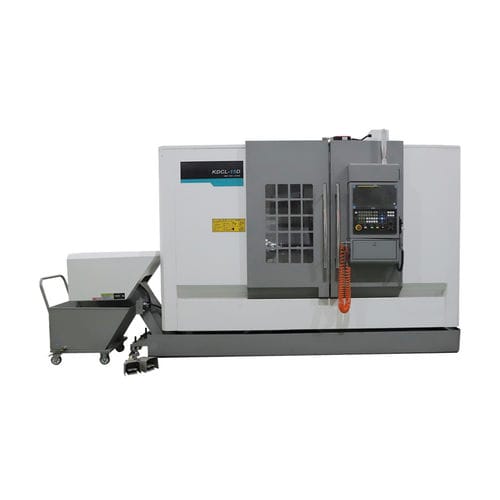

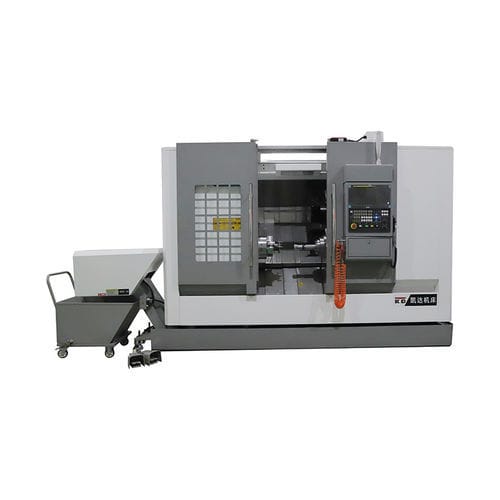

CNC turning center KDCL-15D2-axisslant bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Applications
- for complex parts, for shaft machining, for long workpieces
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Diameter
600 mm
(23.62 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum cutting diameter
400 mm
(16 in)- Maximum cutting length
500 mm
(20 in)- Axe X
220 mm
(9 in)- Axe Z
500 mm
(20 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
11 kW, 15 kW
(15 hp, 20.4 hp)- Overall lenght
4,400 mm
(173 in)- Overall width
2,050 mm
(81 in)- Overall height
2,200 mm
(87 in)- Weight
5,300 kg
(11,684 lb)
Description
Multifunctional CNC lathe
1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. The spindle component is of high rigidity construction to provide variable speed to realize constant linear speed cutting and high speed cutting.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
Item - Unit - KDCL-15D
Travel - -
Max.swing Dia. over bed - mm - Ø600
Max.cutting Dia. for disc parts - mm - Ø400
Max.cutting Dia. for axle parts - mm - Ø300
Max.cutting length for axle parts - mm - 500
Max.travel for axis X - mm - 220
Max.travel for axis Y - mm - /
Max.travel for axis Z - mm - 500
Max.travel for axis ZB - mm - 400
Spindle - -
Main spindle nose - - A₂-6
Main spindle bore - mm - Ø65
Main spindle max. speed - rpm - 4000
Main spindle motor power - kW - 11/15
Main spindle hydraulic chuck Dia. - inch - 8
Sub-spindle nose - - A₂-6
Sub-spindle bore - mm - Ø65
Sub-spindle max.speed - rpm - 4000
Sub-spindle motor power - kW - 7.5/11
Sub-spindle hydraulic chuck Dia. - inch -
Feed - -
X/Z/ZB axis rapid feed - m/min - 20/20/20
X/Y/Z/ZB axis rapid feed - m/min - -
X/Z/ZB axis motor power - kW - 4/4/4
X/Y/Z/ZB axis motor power - kW - -
Turret - -
Tool post stations - - 12
Outer Dia. cutting tool shank - mm - 25×25
Max.inner Dia. cutting tool shank - mm - Ø40
Live tool collet - - -
Live motor power - kW - -
Max. speed of power tool - rpm - -
Others - -
Bed structure - - 45° slant bed
Total power capacity - kVA - 42
Cooling pump power - W - 270
Lubrication pump capacity - L - 1.8
Overall dimensions （L×W×H） - mm - 4400×2050×2200（with chip conveyor）
Net weight - kg - 5300
