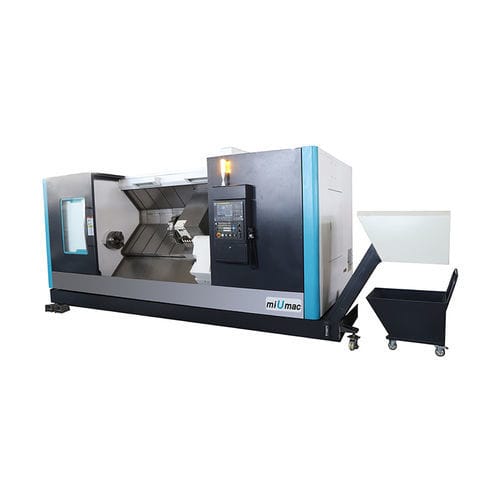

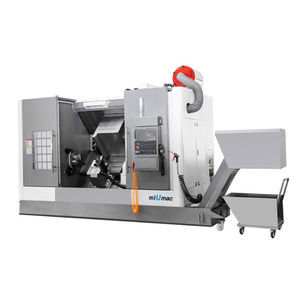

CNC turning center KDCL-35slant bedA2-1112 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Structure
- slant bed
- Spindle mount
- A2-11
- Number of tool stations
- 12 tools
- Performance
- high-rigidity, precision
- Other characteristics
- compact
- Associated function
- milling, drilling
- Diameter
750 mm
(29.53 in)- Spindle speed
1,600 rpm
(10,053.096 rad.min-1)- Maximum part length
1,000 mm, 2,000 mm, 3,000 mm
(39 in, 79 in, 118 in)- Maximum cutting diameter
450 mm, 630 mm
(18 in, 25 in)- Rapids on X
16 m/min
- Rapids on Z
14 m/min
- Nominal power
22 kW, 26 kW
(29.9 hp, 35.4 hp)- Overall lenght
5,200 mm
(205 in)- Overall width
1,980 mm
(78 in)- Overall height
2,260 mm
(89 in)
Description
Item - Unit - KDCL-35
Travel - -
Max.swing Dia. over bed - mm - Ø750
Max.cutting Dia. for disc parts - mm - Ø630
Max.cutting Dia. for axle parts - mm - Ø450
Max.cutting length (from chuck end face to center) - mm - 1000/2000/3000
Distance from spindle center to ground - mm - 1150
Max.travel for axis X - mm - -30~325
Max.travel for axis Z - mm - 1100/2100/3100
Spindle - -
Spindle nose - - A₂-11
Spindle bore - mm - Ø105
Chuck Dia. - mm - Ø380
Spindle bearing Dia. (front/rear) - mm - Ø160/Ø150
Max. spindle speed - rpm - 1600
Spindle motor power - kW - 26/22
Feed - -
X/Z axis rapid feed - m/min - 16/14
X/Z axis servo motor power - kW - 3/3
Bed guide rail span (Z axis) - mm - 510
Saddle guide rail span (X axis) - mm - 376
Tailstock rail span - mm - 354
Turret - -
Tool post stations - - 12
Tool selection method - - Choose nearby
Outer Dia. cutting tool shank - mm - 32×32
Max.inner Dia. cutting tool shank - mm - Ø50
Rotating tool drive motor power - kW - /
Max. rotation speed of rotating tool - rpm - /
Rotating tool sleeve - mm - /
Tailstock - -
Tailstock sleeve Dia. - mm - Ø120
Tailstock sleeve travel - mm - 200
Tailstock sleeve bore taper - - MT NO.6
Tailstock travel (W axis) - mm - 800/1800/2800
Precision - -
X axis positioning accuracy - mm - ≤0.008
Z axis positioning accuracy - mm - ≦0.016
C axis positioning accuracy - Sec. - －
X axis repeat positioning accuracy - mm - ≦0.005
Z axis repeat positioning accuracy - mm - ≦0.010
C axis repeat positioning accuracy - Sec. - －
Others - -
Bed structure - - 45° slant bed
Total power capacity - kVA - 50
Cooling pump power - W - 750
Lubrication pump capacity - L - 1.8
Overall dimensions （L×W×H） - mm - 5200/62007200×1980×2260
Net weight - kg - 8000/10000/12000
