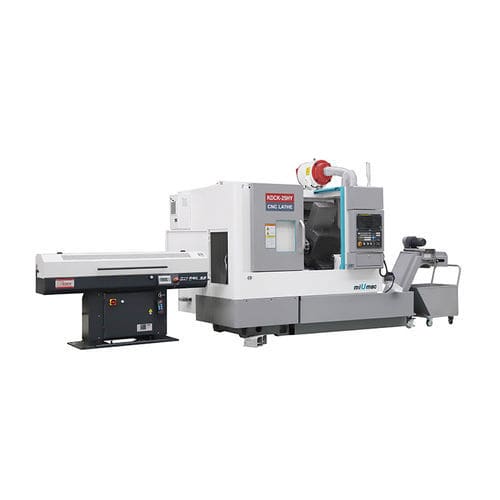

CNC turning center KDCK-25HY3-axisslant bed12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- slant bed
- Number of tool stations
- 12 tools
- Applications
- for complex parts, for shaft machining
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Other characteristics
- compact
- Diameter
500 mm
(19.69 in)- Spindle speed
3,000 rpm
(18,849.556 rad.min-1)- Maximum cutting diameter
260 mm
(10 in)- Maximum cutting length
320 mm
(13 in)- Axe X
160 mm
(6 in)- Axe Z
500 mm
(20 in)- Rapids on X
15 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
1,950 mm, 2,000 mm
(77 in, 79 in)- Overall width
1,650 mm, 1,700 mm
(65 in, 67 in)- Overall height
1,680 mm, 1,880 mm
(66 in, 74 in)- Weight
3,800 kg
(8,378 lb)
Description
1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. Flat bed and slant slide structure, with high rigidity and fluent chip removal.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
Item - Unit - KDCK-25HY
Processing - -
Max. swing Dia. over bed - mm - Ø500
Max.cuting Dia.for disc parts - mm - Ø260
Max cuting Dia. for axle parts - mm - Ø250
Max. cutting length for axle parts - mm - 320
Spindle - -
Spindle bore - mm - Ø62
Spindle nose - mm - Ø170 straight station
Spindle speed - rpm - 3000
Travel - -
Max.travel of axis x - mm - 160
Max. travel of axis Z - mm - 390
Max. travel of axis Y - mm - ±30
Feed - -
Rapid feed for axis X - m/min - 15
Rapid feed for axis Z - m/min - 20
Rapid feed for axis Y - mm - 5
Turret - -
Tool post stations - pcs - 12
Outside Dia. Cuting tool shank - mm - 20×20
Max.inner Dia. cutting tool shank - mm - Ø25
Tailstock - -
Tailstock sleeve Dia. - mm - Ø63
Tailstock sleeve travel - mm - 115
Tailstock sleeve bore taper - - MT.No.4
Others - -
Power of main motor - kW - 7.5/11
Bed structure - - 30° Slant bed
Min. input - mm - 0.001
Repeatability - mm - ≤0.006
Chuck Dia. - inch - 8
Overall dimensions(L×WxH) - mm - 2000×1700×1880
Net weight - kg - 3800
