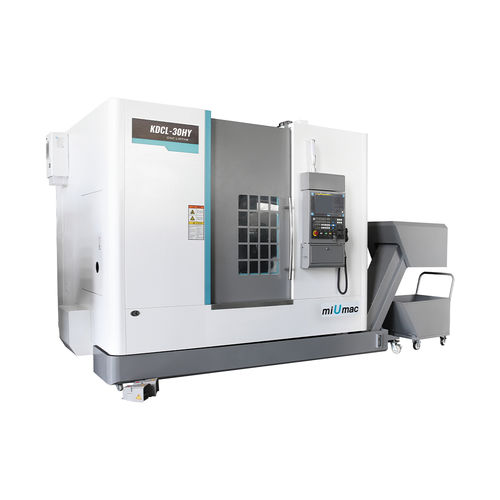

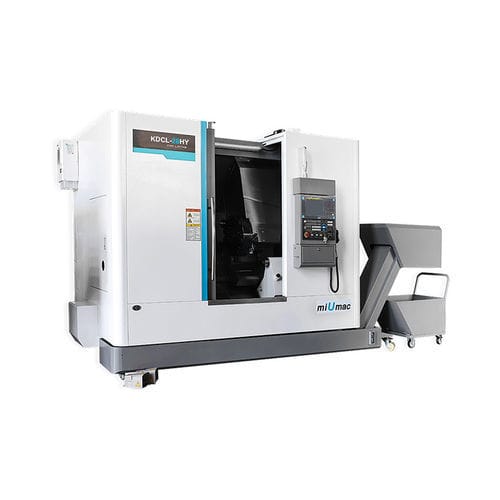

CNC turning center KDCL-30HY3-axisslant bedA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- slant bed
- Spindle mount
- A2-8
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- for complex parts, for shaft machining
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Other characteristics
- Y-axis
- Diameter
650 mm
(25.59 in)- Spindle speed
2,500 rpm
(15,707.963 rad.min-1)- Maximum cutting diameter
410 mm
(16 in)- Maximum cutting length
800 mm
(31 in)- Axe X
270 mm
(11 in)- Axe Z
1,000 mm
(39 in)- Rapids on X
16 m/min
- Rapids on Z
20 m/min
- Nominal power
18.5 kW, 22 kW
(25.2 hp, 29.9 hp)- Overall lenght
4,600 mm
(181 in)- Overall width
2,300 mm
(91 in)- Overall height
2,860 mm
(113 in)- Weight
8,500 kg
(18,739 lb)
Description
Multifunctional CNC lathe
1. The machine adopts CNC system with full function and high relibility. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. The spindle component is of high rigidity construction to provide variable speed to realize constant linear speed cutting and high speed cutting.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
Item - Unit - KDCL-30HY
Travel - -
Max.swing Dia. over bed - mm - Ф650
Max.cutting Dia. for disc parts - mm - Ø410
Max.cutting Dia. for axle parts - mm - Ø410
Max.cutting length for axle parts - mm - 800
Max.travel for axis X - mm - 270
Max.travel for axis Y - mm - ±75
Max.travel for axis Z - mm - 1000
Spindle - -
Spindle nose - - A2-8
Spindle bore - mm - Ф90
Spindle drive mode - - belt drive
Max. spindle speed - rpm - 2500
Spindle motor power - kW - 18.5/22
Hydraulic chuck Dia. - inch - 12
Feed - -
X/Y/Z axis rapid feed - m/min - 16/10/20
Turret - -
Tool post stations - - 12
Outer Dia. cutting tool shank - mm - 25×25
Max.inner Dia. cutting tool shank - mm - Ф40
Live tool collet - - ER32
Max. speed of Live tool - rpm - 4000
Live motor power - kW - 3.7/5.5（rated motor）
Tailstock - -
Tailstock sleeve Dia. - mm - Ф100
Tailstock sleeve travel - mm - 200
Tailstock sleeve bore taper - - MT.NO.6
Tailstock travel - mm - 800
Others - -
Bed structure - - 45°slant bed
Total power capacity - kVA -
Cooling pump power - W - 750
Lubrication pump capacity - L - 1.8
Overall dimensions （L×W×H） - mm - 4600×2300×2860
Net weight - kg - 8500
