- Zhejiang KAIDA Machine Tool CO., LTD.

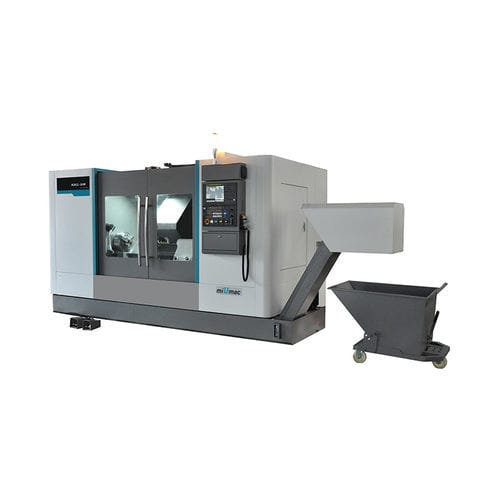

CNC turning center KDCL-50B2-axisslant bed12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- for complex parts
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Diameter
1,000 mm
(39.37 in)- Spindle speed
800 rpm
(5,026.548 rad.min-1)- Maximum cutting diameter
900 mm
(35 in)- Maximum cutting length
2,000 mm
(79 in)- Axe X
550 mm
(22 in)- Axe Z
2,100 mm
(83 in)- Rapids on X
16 m/min
- Rapids on Z
12 m/min
- Nominal power
22 kW
(29.9 hp)- Overall lenght
7,000 mm
(276 in)- Overall width
2,300 mm
(91 in)- Overall height
2,450 mm
(96 in)- Weight
13,000 kg
(28,660 lb)
Description
1. The machine adopts CNC system with full function and high reliability.
2. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
3. X and Z axes adopt box guide way to result high rigidity and accuracy.
Catalogs
No catalogs are available for this product.
