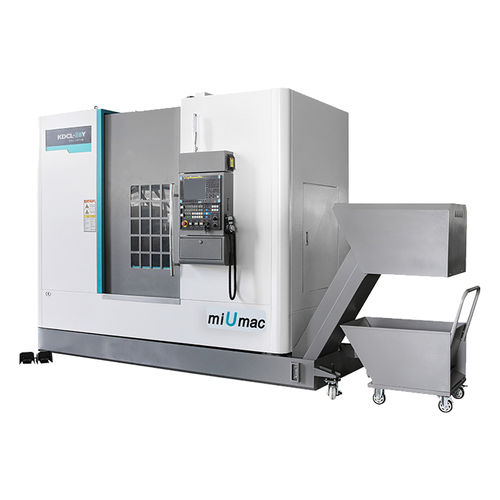

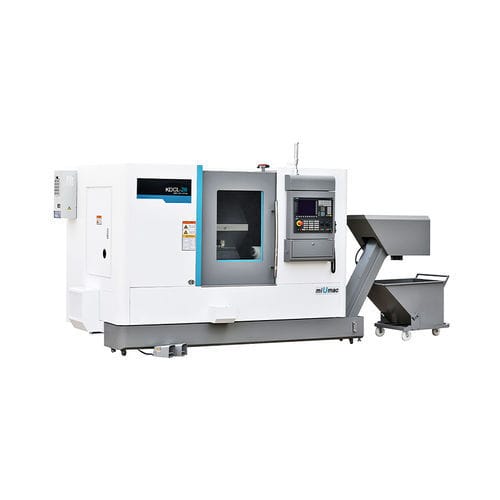

CNC turning center KDCL-28Y

2-axisslant bedA2-6

KDCL-28Y Multifunctional CNC lathe 1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure. 2. One-piece slant bed increases machines' rigidity and easy chip conveying. 3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy. Processing -   -   Max. swing Dia. over bed - Ø520 mm Max.cutting Dia. for disc parts - Ø360mm Max.cuting Dia. for axle parts - Ø280mm Max. cutting length for axle parts - 420mm Spindle -   -   Spindle bore - Ø63mm Spindle nose - A₂-6 -   Spindle  speed - 5000 - r/min Travel -   -   Max. travel of axis X - 255mm Max. travel of axis Z - 550mm Max. travel of axis Y - ±38mm Speed -   -   Rapid feed for axis X - 24m/min Rapid feed for axis Z - 24m/min Rapid feed for axis Y - 10m/min Turret -   -   Tool post stations - 12pcs Outside Dia. Cutting tool shank - 25×25mm Max.inner Dia. cutting tool shank - Ø40mm Tailstock -   -   Tailstock sleeve Dia. - Ø80 mm Tailstock sleeve travel - 120mm Tailstock sleeve bore taper - M.T.No.5 -   Others -   -   Power of main motor - 15/18.5kW Bed structure - 45° Slant bed -   Min. input - 0.001mm Repeatability - ≤0.006mm Hydraulic chuck specification - 8inch Overall dimensions (L×WxH) - 4500×2050×2500mm Net weight - 4800kg
