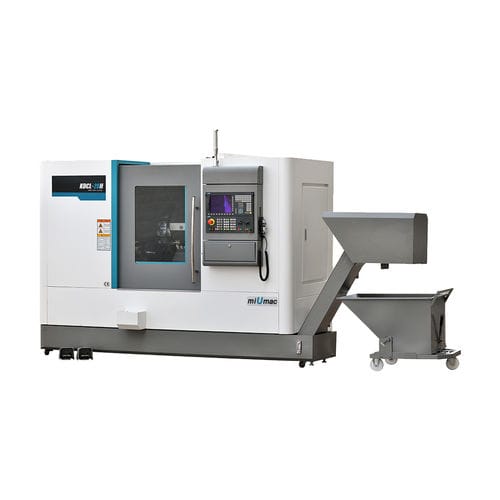

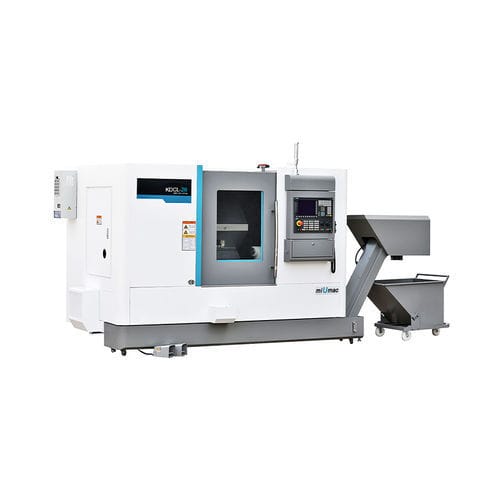

CNC turning center KDCL-28H2-axisslant bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Applications
- for automotive applications, for shaft machining, for complex parts, for metal
- Performance
- high-precision, high-rigidity, high-productivity, high-performance
- Diameter
520 mm
(20.47 in)- Spindle speed
4,000 rpm, 5,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1)- Maximum cutting diameter
370 mm
(15 in)- Maximum cutting length
420 mm
(17 in)- Axe X
235 mm
(9 in)- Axe Z
540 mm
(21 in)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Overall lenght
4,500 mm
(177 in)- Overall width
1,850 mm
(73 in)- Overall height
2,000 mm
(79 in)- Weight
4,300 kg
(9,480 lb)
Description
Multifunctional CNC lathe
1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. One-piece slant bed increases machines' rigidity and easy chip conveying.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
Item - Unit - KDCL-28H
Processing - -
Max. swing Dia. over bed - mm - Ø520
Max.cutting Dia. for disc parts - mm - Ø370
Max.cuting Dia. for axle parts - mm - Ø250
Max. cutting length for axle parts - mm - 420
Spindle - -
Spindle bore - mm - Ø63/Ø65 (sleeve)
Spindle nose - - A₂-6
Spindle speed - r/min - 4000/5000(sleeve)
Travel - -
Max. travel of axis X - mm - 235
Max. travel of axis Z - mm - 540
Max. travel of axis Y - mm - -
Speed - -
Rapid feed for axis X - m/min - 30
Rapid feed for axis Z - m/min - 30
Rapid feed for axis Y - m/min - -
Turret - -
Tool post stations - pcs - 12
Outside Dia. Cutting tool shank - mm - 20×20
Max.inner Dia. cutting tool shank - mm - Ø32
Tailstock - -
Tailstock sleeve Dia. - mm - Ø80
Tailstock sleeve travel - mm - 120
Tailstock sleeve bore taper - - MT.No.4
Others - -
Power of main motor - kW - 15/18.5
Bed structure - - 45° Slant bed
Min. input - mm - 0.001
Repeatability - mm - ≤0.006
Hydraulic chuck specification - inch - 8
Overall dimensions (L×WxH) - mm - 4500×1850×2000
Net weight - kg - 4300
Catalogs
No catalogs are available for this product.
See all of Zhejiang KAIDA Machine Tool CO., LTD.‘s catalogsOther Zhejiang KAIDA Machine Tool CO., LTD. products
Multifunctional CNC lathe
