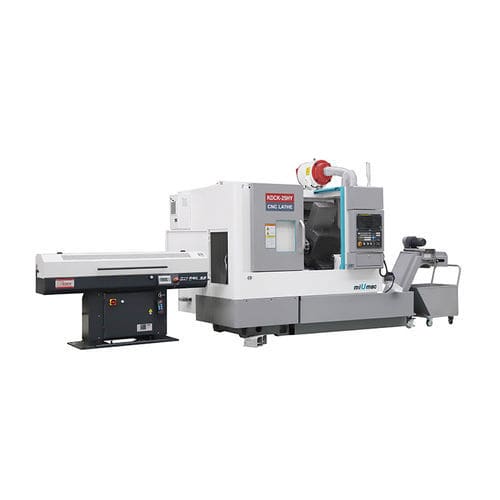

CNC turning center KDCK-252-axisslant bed8 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Number of tool stations
- 8 tools
- Applications
- for complex parts, for shaft machining
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Diameter
500 mm
(19.69 in)- Spindle speed
3,000 rpm
(18,849.556 rad.min-1)- Maximum cutting diameter
300 mm
(12 in)- Maximum cutting length
420 mm
(17 in)- Axe X
160 mm
(6 in)- Axe Z
500 mm
(20 in)- Rapids on X
16 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
1,950 mm
(77 in)- Overall width
1,650 mm
(65 in)- Overall height
1,680 mm
(66 in)- Weight
3,400 kg
(7,496 lb)
Description
Multifunctional CNC lathe
1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. Flat bed and slant slide structure, with high rigidity and fluent chip removal.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
Item - Unit - KDCK-25
Processing - -
Max. swing Dia. over bed - mm - Ø500
Max.cuting Dia.for disc parts - mm - Ø300
Max cuting Dia. for axle parts - mm - Ø250
Max. cutting length for axle parts - mm - 420
Spindle - -
Spindle bore - mm - Ø62
Spindle nose - mm - Ø170 straight station
Spindle speed - rpm - 3000
Travel - -
Max.travel of axis x - mm - 160
Max. travel of axis Z - mm - 500
Max. travel of axis Y - mm - －
Feed - -
Rapid feed for axis X - m/min - 12
Rapid feed for axis Z - m/min - 20
Rapid feed for axis Y - mm - －
Turret - -
Tool post stations - pcs - 8
Outside Dia. Cuting tool shank - mm - 25×25
Max.inner Dia. cutting tool shank - mm - Ø40
Tailstock - -
Tailstock sleeve Dia. - mm - Ø63
Tailstock sleeve travel - mm - 115
Tailstock sleeve bore taper - - MT.No.4
Others - -
Power of main motor - kW - 7.5/11
Bed structure - - 30° Slant bed
Min. input - mm - 0.001
Repeatability - mm - ≤0.006
Chuck Dia. - inch - 8
Overall dimensions(L×WxH) - mm - 1950×1650×1680
Net weight - kg - 3400
