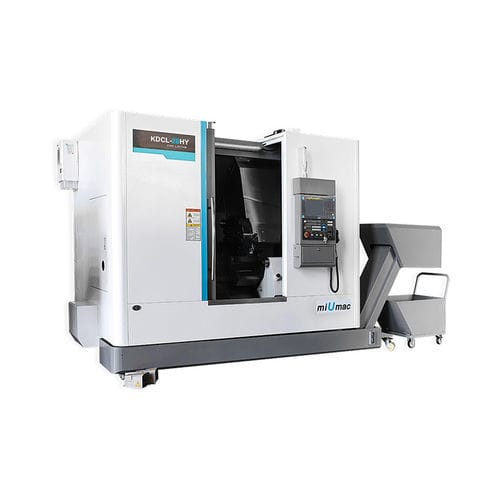

CNC turning center KDCL-28HY3-axisslant bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- slant bed
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- for complex parts, for shaft machining
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Other characteristics
- Y-axis
- Diameter
600 mm
(23.62 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum cutting diameter
380 mm
(15 in)- Maximum cutting length
420 mm
(17 in)- Axe X
235 mm
(9 in)- Axe Z
550 mm
(22 in)- Rapids on X
20 m/min
- Rapids on Z
16 m/min
- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Overall lenght
4,500 mm
(177 in)- Overall width
2,080 mm
(82 in)- Overall height
2,500 mm
(98 in)- Weight
5,200 kg
(11,464 lb)
Description
1. The machine adopts CNC system with full function and high relibility. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. The spindle component is of high rigidity construction to provide variable speed to realize constant linear speed cutting and high speed cutting.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
Item - Unit - KDCL-28HY
Travel - -
Max.swing Dia. over bed - mm - Ø600
Max.cutting Dia. for disc parts - mm - Ø380
Max.cutting Dia. for axle parts - mm - Ø300
Max.cutting length for axle parts - mm - 420
Max.travel for axis X - mm - 235
Max.travel for axis Y - mm - ±50
Max.travel for axis Z - mm - 550
Spindle - -
Spindle nose - - A2-6
Spindle bore - mm - Ø63
Spindle drive mode - - belt drive
Max. spindle speed - rpm - 4000
Spindle motor power - kW - 15/18.5
Hydraulic chuck Dia. - inch - 8
Feed - -
X/Y/Z axis rapid feed - m/min - 20/10/16
Turret - -
Tool post stations - - 12
Outer Dia. cutting tool shank - mm - 25×25
Max.inner Dia. cutting tool shank - mm - Ø40
Live tool collet - - ER32
Max. speed of Live tool - rpm - 4000
Live motor power - kW - 2.7（feed motor）
Tailstock - -
Tailstock sleeve Dia. - mm - Ø80
Tailstock sleeve travel - mm - 120
Tailstock sleeve bore taper - - MT.NO.4
Tailstock travel - mm - 500
Others - -
Bed structure - - 45°slant bed
Total power capacity - kVA - 40
Cooling pump power - W - 750
Lubrication pump capacity - L - 1.8
Overall dimensions （L×W×H） - mm - 4500×2080×2500
Net weight - kg - 5200
