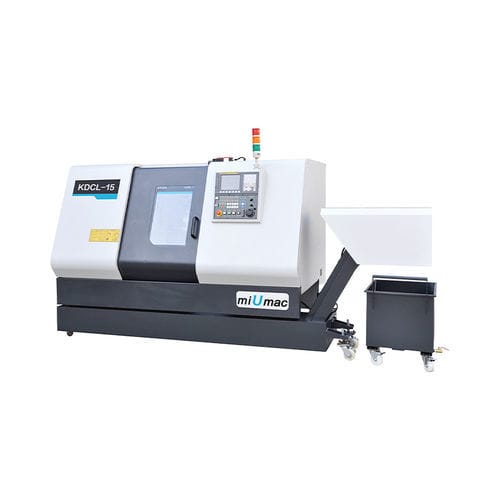

CNC turning center KDCL-152-axisslant bedA2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-5
- Number of tool stations
- 8 tools
- Applications
- for automotive applications, for shaft machining, for complex parts, for metal, for molds
- Performance
- high-precision, high-rigidity, high-productivity, precision
- Diameter
360 mm
(14.17 in)- Spindle speed
4,000 rpm, 6,000 rpm
(25,132.741 rad.min-1, 37,699.112 rad.min-1)- Maximum cutting diameter
250 mm
(10 in)- Maximum cutting length
300 mm
(12 in)- Axe X
140 mm
(6 in)- Axe Z
320 mm
(13 in)- Rapids on X
12 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
2,700 mm
(106 in)- Overall width
1,460 mm
(57 in)- Overall height
1,680 mm
(66 in)- Weight
3,000 kg
(6,614 lb)
Description
1. The machine adopts CNC system with full function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2. The machine has 45° integrated slant bed with high rigidity and fluent chip removal.
3. X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
