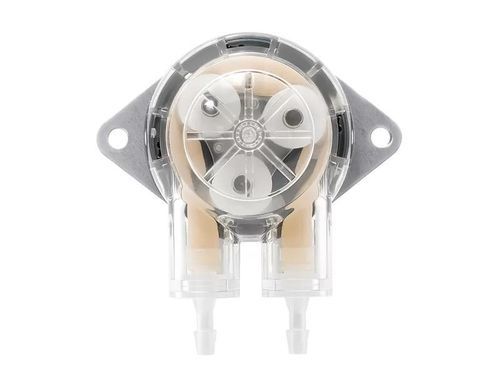

Peristaltic pump LFP102DBwith DC motorfor laboratorystainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Operation
- with DC motor
- Domain
- for laboratory
- Material
- stainless steel
- Voltage
- 12 V, 24 V
- Other characteristics
- fixed-flow, easy tube loading, low-noise
- Flow
Min.: 0.00054 m³/h
(0.01907 ft³/h)Max.: 0.006 m³/h
(0.21189 ft³/h)- Power
Min.: 0 kW
(0 hp)Max.: 0.01 kW
(0.01 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 45 °C
(113 °F)- Input diameter
Min.: 1 mm
(0.039 in)Max.: 3 mm
(0.118 in)- Output diameter
Min.: 3 mm
(0.118 in)Max.: 5 mm
(0.197 in)- Weight
Min.: 0.11 kg
(0.24 lb)Max.: 0.11 kg
(0.24 lb)
Description
Product overview
Specifications (excerpt)
Model: LFP102DB (table reference: P102DB)
Installation: Stainless steel mounting plate (standard; customizable)
Motor type: Brushed DC motor
Control: Power-on (on/off) operation
Function: Fixed flow rate
Working voltage: DC12V or DC24V
Power consumption: ≤ 5W
Weight: 108 g
Operating environment: Temperature 0–45°C; Relative humidity <85% RH
Rollers: Standard 3 rollers
FLOW RATE (ml/min)
Voltage: DC12V, DC24V
Compatible tube materials
Notes & typical applications
- High precision and stable fixed-flow dosing in a compact footprint.
- Low noise operation and tool-free tube replacement for reduced maintenance time.
Specifications (excerpt)
Model: LFP102DB (table reference: P102DB)
Installation: Stainless steel mounting plate (standard; customizable)
Motor type: Brushed DC motor
Control: Power-on (on/off) operation
Function: Fixed flow rate
Working voltage: DC12V or DC24V
Power consumption: ≤ 5W
Weight: 108 g
Operating environment: Temperature 0–45°C; Relative humidity <85% RH
Rollers: Standard 3 rollers
FLOW RATE (ml/min)
Voltage: DC12V, DC24V
- 9–25 — Tube size 1×3
- 25–55 — Tube size 2×4
- 55–100 — Tube size 3×5
Compatible tube materials
- BPT tube
- Silicone tube
- A60-F
- Viton tube
Notes & typical applications
- Model shown on page: LFP102DB (internal table may show P102DB).
- Suitable for dosing, transfer and laboratory or industrial small-volume delivery systems.
- Stainless steel mounting and tool-free tube change simplify integration and maintenance.
