Peristaltic pump LFP303ADB

for liquidswith DC motornormal priming

Overview

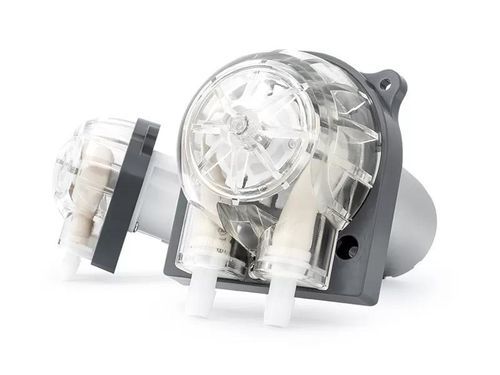

Peristaltic pump LFP303ADB with DC motor for controlled fluid transfer in industrial and laboratory applications, providing stable flow and low noise.

Key features

• High precision and stable flow control
• Low noise suitable for confined or laboratory environments
• Durable design with long service life
• Tool-free tube replacement for fast maintenance

Specifications
Model: P303ADB (page reference)
Installation: Built-in, mounting hole
Motor: Brushed DC motor
Control: Power-on operation (on/off)
Function: Fixed flow rate
Voltage: DC12V, DC24V
Power: ≤12W
Weight: 300 g
Operating environment: Temperature 0–45°C; Relative humidity <85% RH
Rollers: Standard 2 rollers + 2 training wheels; 4 rollers optional

Flow rate (ml/min)
Voltage: DC12V, DC24V
16#: 210–270 ml/min
25#: 380–540 ml/min
17#: 550–730 ml/min
Compatible tube types: BPT tube / Silicone tube / A60-F / Viton tube

Documents & drawings
Specification sheet (PDF) available for LFP303ADB; dimensional drawings provided.

Technical details

• Brand: LEFOO
• Model: LFP303ADB (internal designation: P303ADB)
• Pump type: Peristaltic pump with DC motor
• Voltage: DC12V, DC24V
• Power consumption: ≤12W
• Weight: ~300 g
• Operating temperature: 0–45°C; Humidity <85% RH
• Flow range: 210–730 ml/min depending on tube size
• Supported tube materials: BPT, Silicone, A60-F, Viton
• Maintenance: Quick tube change without tools
